With Scan Tool

DTC READING PROCEDURE

1. Perform the necessary vehicle preparation and visual inspection.

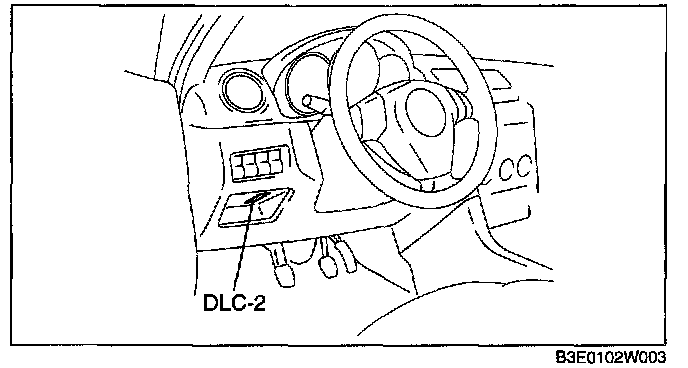

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
3. Retrieve the DTCs using the WDS or equivalent.

PENDING TROUBLE CODE ACCESS PROCEDURE

1. Perform the necessary vehicle preparation and visual inspection.

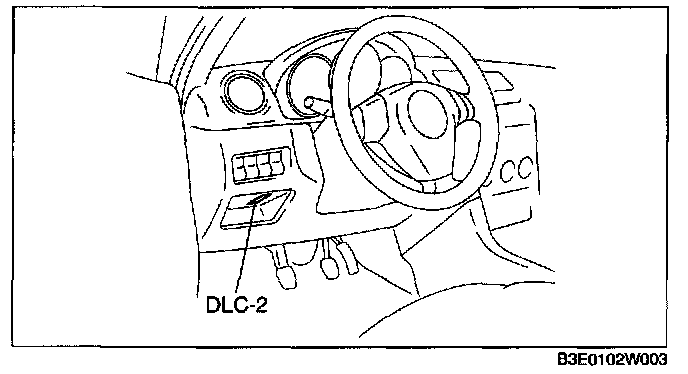

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
3. Retrieve the pending trouble codes using the WDS or equivalent.
