Curtain Air Bag Module
CURTAIN AIR BAG MODULE REMOVAL/INSTALLATIONWARNING:
- Handling the air bag module improperly can accidentally deploy the airbag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module.
1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for 1 min or more.
3. Remove the following parts:
1. Console (4 door)
2. A-pillar trim
3. Front scuff plate
4. Rear scuff plate
5. B-pillar tower trim
6. Upper anchor of the front seat belt
7. B-pillar upper trim
8. Rear seat
9. Tire house trim
10. Trunk side upper trim (5 door)
11. C-pillar trim
12. Map light
13. Interior light
14. Sunvisor
15. Assist handle
16. Headliner
17. Head impact pad

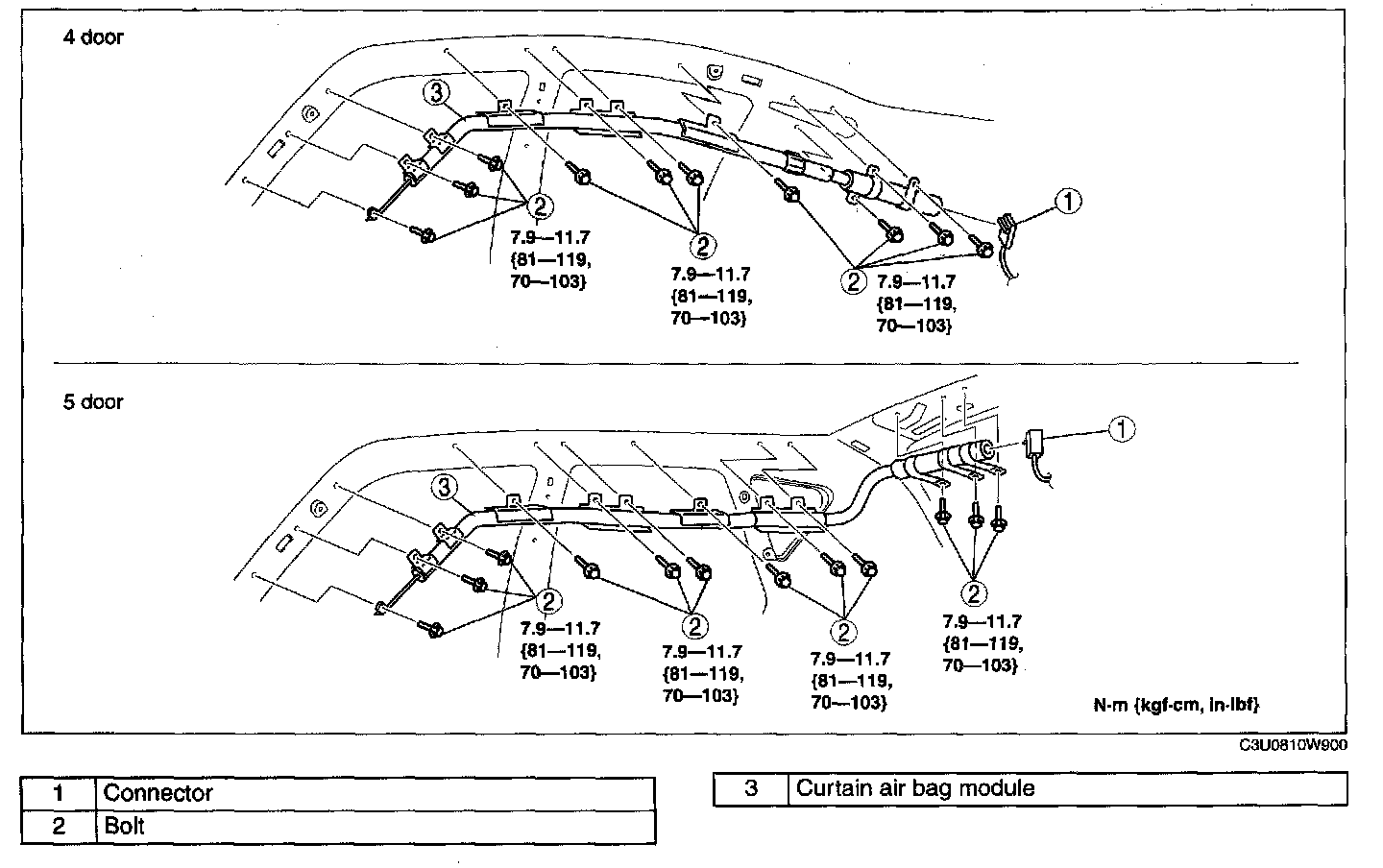

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. When the ignition switch is turned to the ON position verify that the air bag system warning light illuminates for approx. 6 s and goes out.
- If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system.
