Engine - Revised Oil Pan Removal/Installtion: Overview

Bulletin No: 01-013/09

Last Issued: 04/16/2009

Subject:
ENGINE OIL PAN REMOVAL / INSTALLATION PROCEDURE AND SUGGESTED REPAIR TIME UPDATE

APPLICABLE MODEL(S)/VINS
2004-2009 Mazda3 vehicles with LF and L3 engines (NOT including Mazdaspeed3)

DESCRIPTION

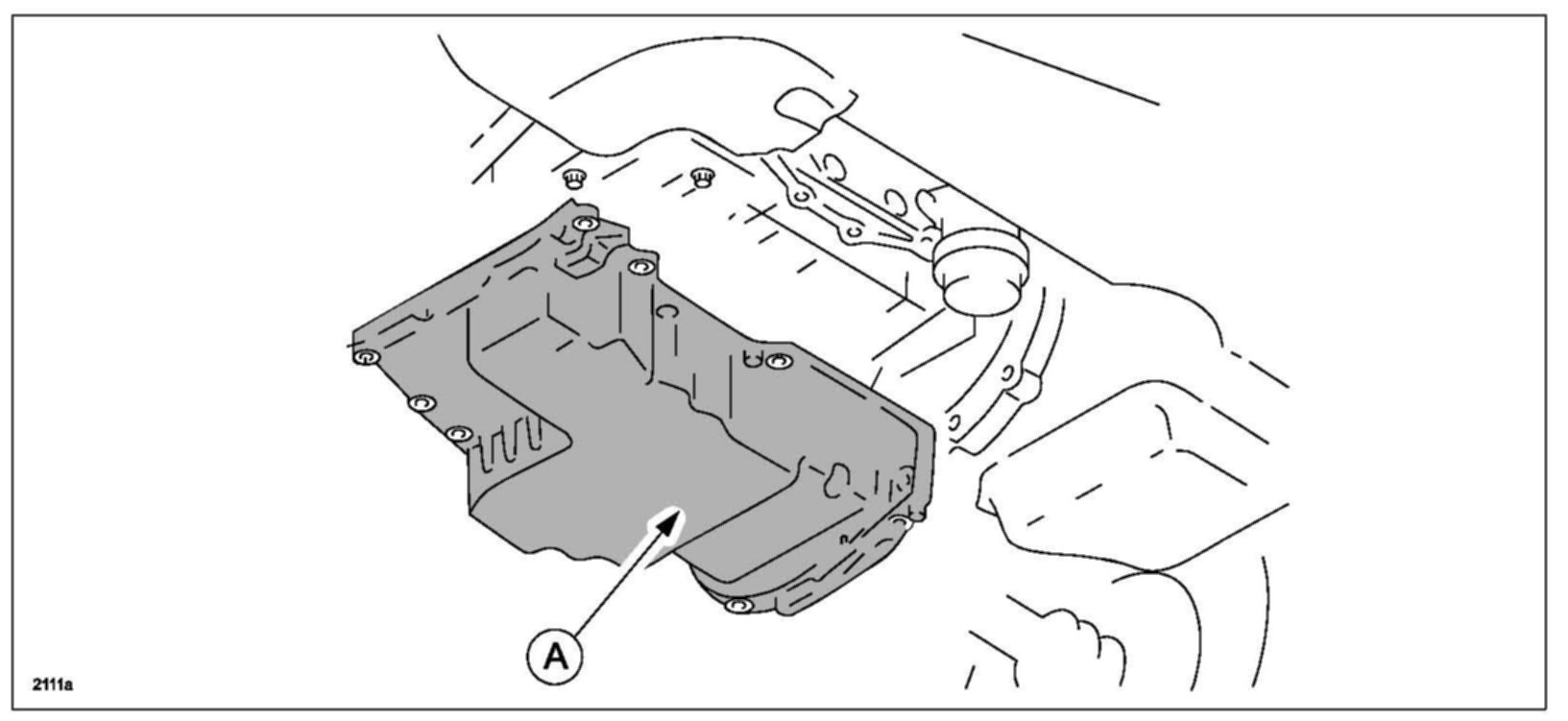

The removal / installation procedure and suggested repair time of engine oil pan have been updated. When you remove / install the engine oil pan (A) to repair oil leakage from the engine oil pan or other reasons, be sure to follow this updated procedure.

Due to the change of the procedure, the repair time has also been updated.

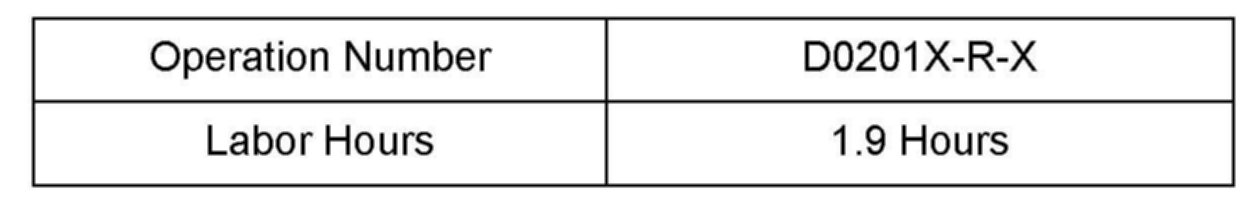

REPAIR TIME
