Bushing Inner Diameter Inspection

Bushing inner diameter inspection

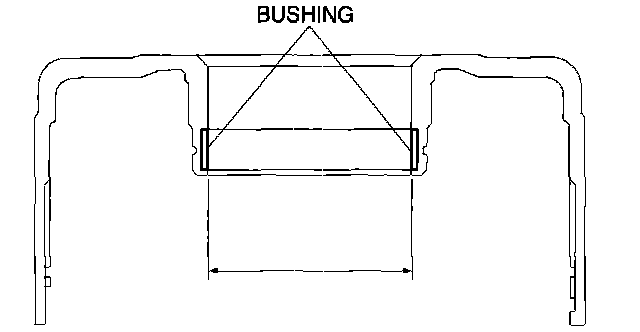

1. Measure the bushing of the 3-4 clutch hub.
Bushing inner diameter
Standard: 18.000 - 18.018 mm (0.70866 - 0.70936 inch)
Maximum: 18.038 mm (0.71016 inch)
2. If not as specified, replace the 3-4 clutch hub.

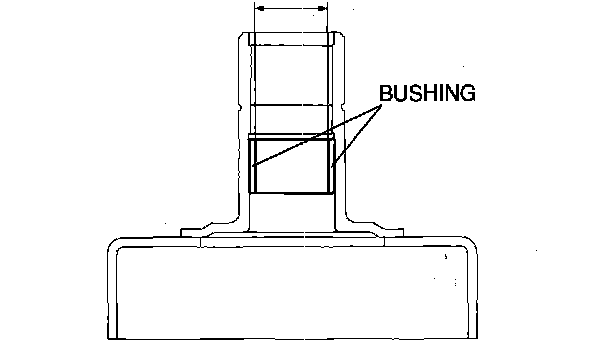

3. Measure the bushing of the 2-4 brake drum.
Bushing inner diameter
Standard: 55.005 - 55.030 mm (2.16555 - 2.16653 inch)
Maximum: 55.050 mm (2.16732 inch)
4. If not as specified, replace the 2-4 brake drum.
