5 Door

REAR DOOR GLASS REMOVAL/INSTALLATION

5 Door
1. Fully lower the rear door glass.
2. Remove the sail garnish.
3. Remove the rear door garnish.
4. Remove the rear belt line molding.

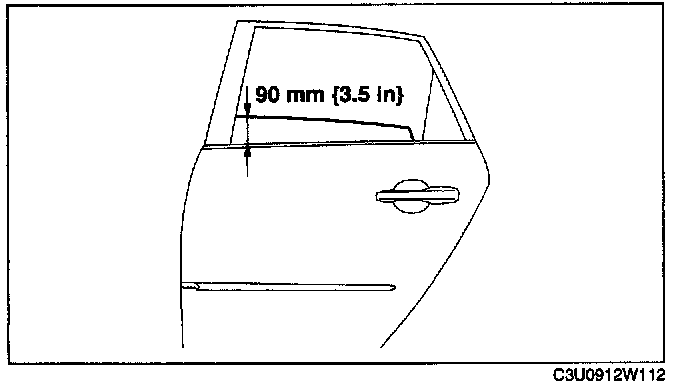

5. Adjust the door glass position as shown in the figure.
6. Disconnect the negative battery cable. (Vehicles with power window system)
7. Remove the regulator handle. (Vehicles with manual window system)
8. Remove the rear door trim.

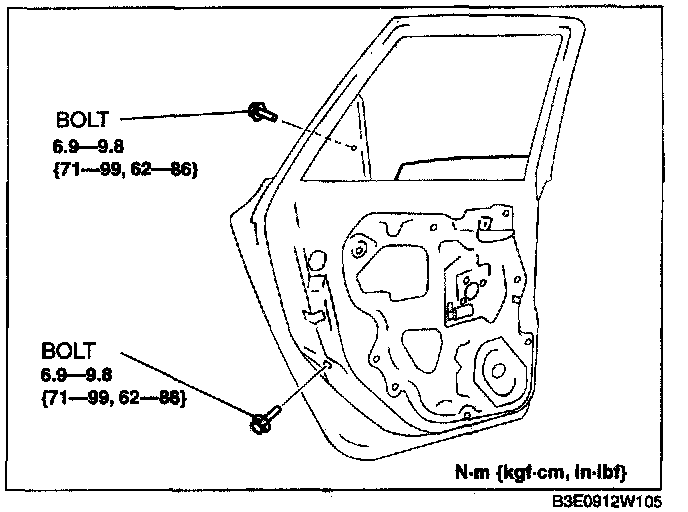

9. Remove the bolts.

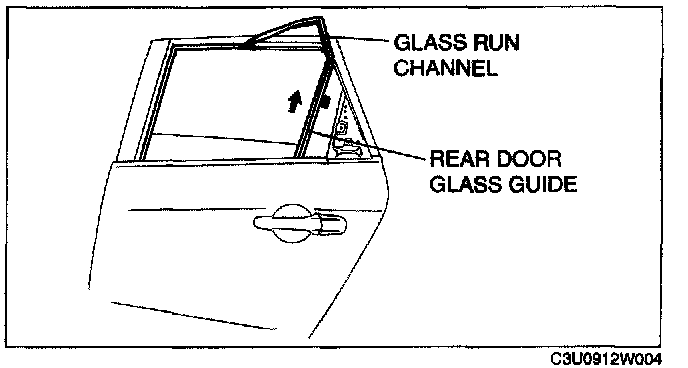

10. Remove the rear door glass guide and glass run channel as a single unit.

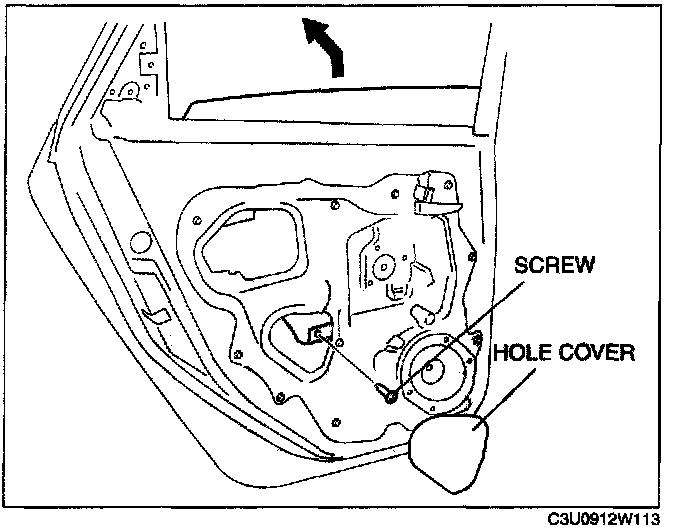

11. Remove the hole cover.




12. Remove the screw.
13. Lift the rear door glass up and remove while tilting it.
14. Install in the reverse order of removal.
