Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2004
>>
3 L4-2.3L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Washer Fluid Level Switch
>>
Locations
>>
Connector Locations
Connector Locations

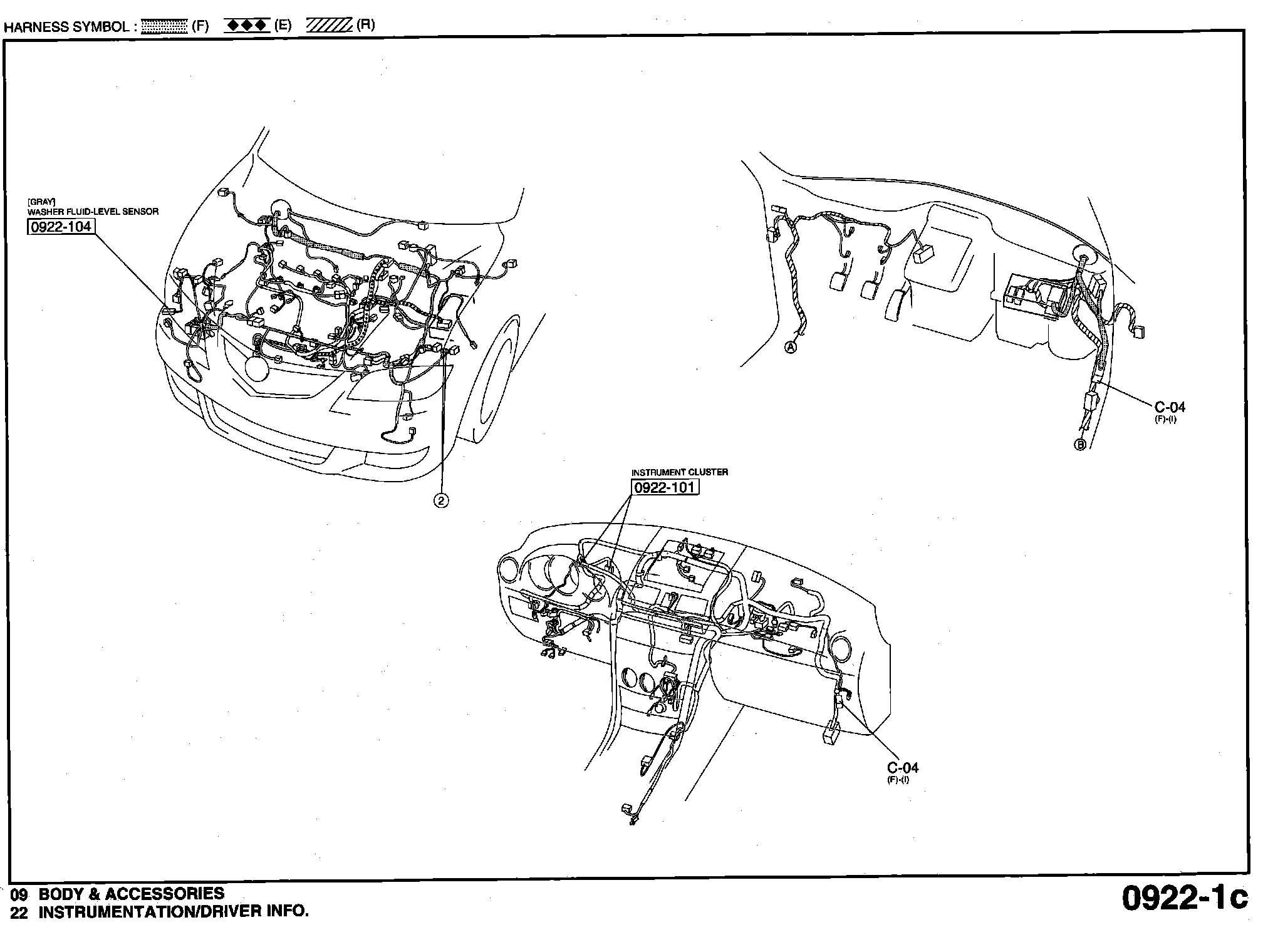

View 0922-1c:
