Windshield Washer Spray Nozzle: Adjustments

REAR WASHER NOZZLE ADJUSTMENT

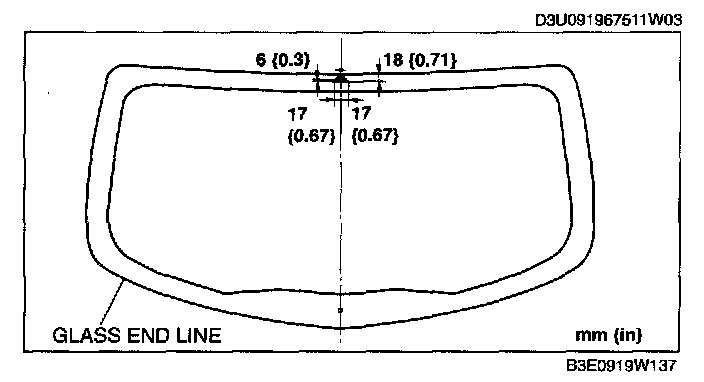

1. Insert a needle or an equivalent tool into the spray hole of the rear washer nozzle and adjust the nozzle direction as shown.
