Alarm System Transponder: Service and Repair

COIL REMOVAL/INSTALLATION

NOTE:
- Do not remove the coil unless you are replacing it.
- When only the coil is replaced, the immobilizer system reprogram procedure is not necessary.

1. Disconnect the negative battery cable.
2. Remove the column cover.

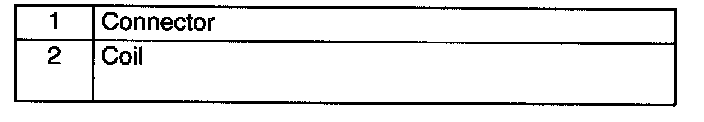

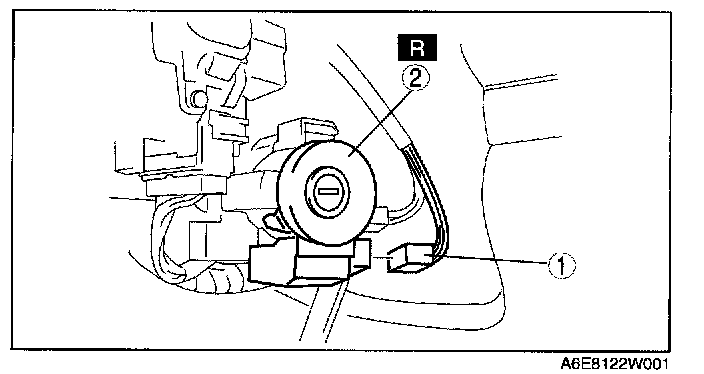

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

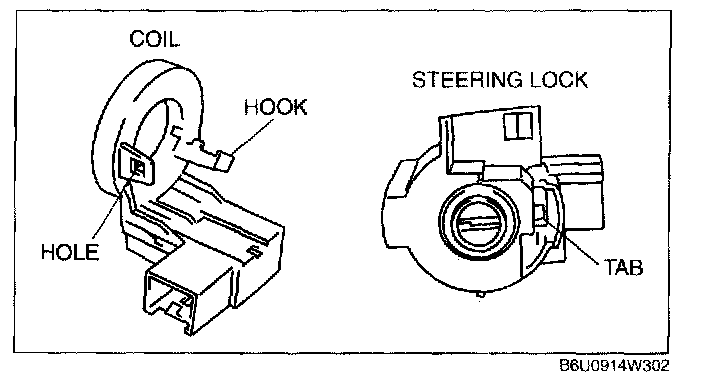

Coil Installation Note




1. Install the hole of coil to the tab of steering lock.
2. Install the hook of coil to the steering lock.
