Driver/Vehicle Information Display: Service and Repair

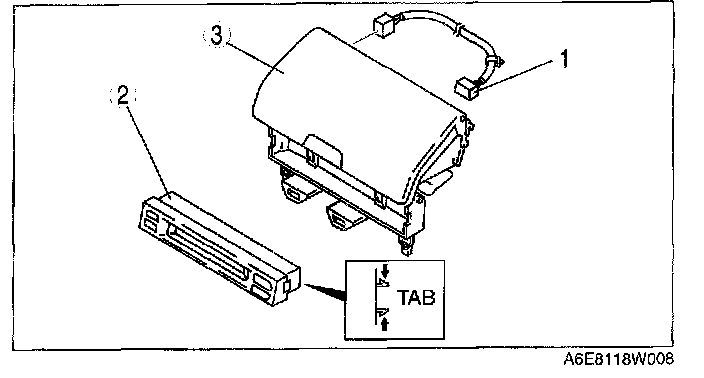

INFORMATION DISPLAY REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the center panel module.
3.
Remove the center box.
4.

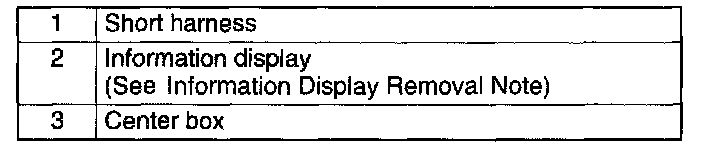

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
Information Display Removal Note 1.
Squeeze the tabs of information display and pull forward to remove it.
