Front Bumper Reinforcement: Service and Repair
FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the front
bumper.
3.
Remove the headlight.
4.
Support the radiator and the condenser using the wire.
5.

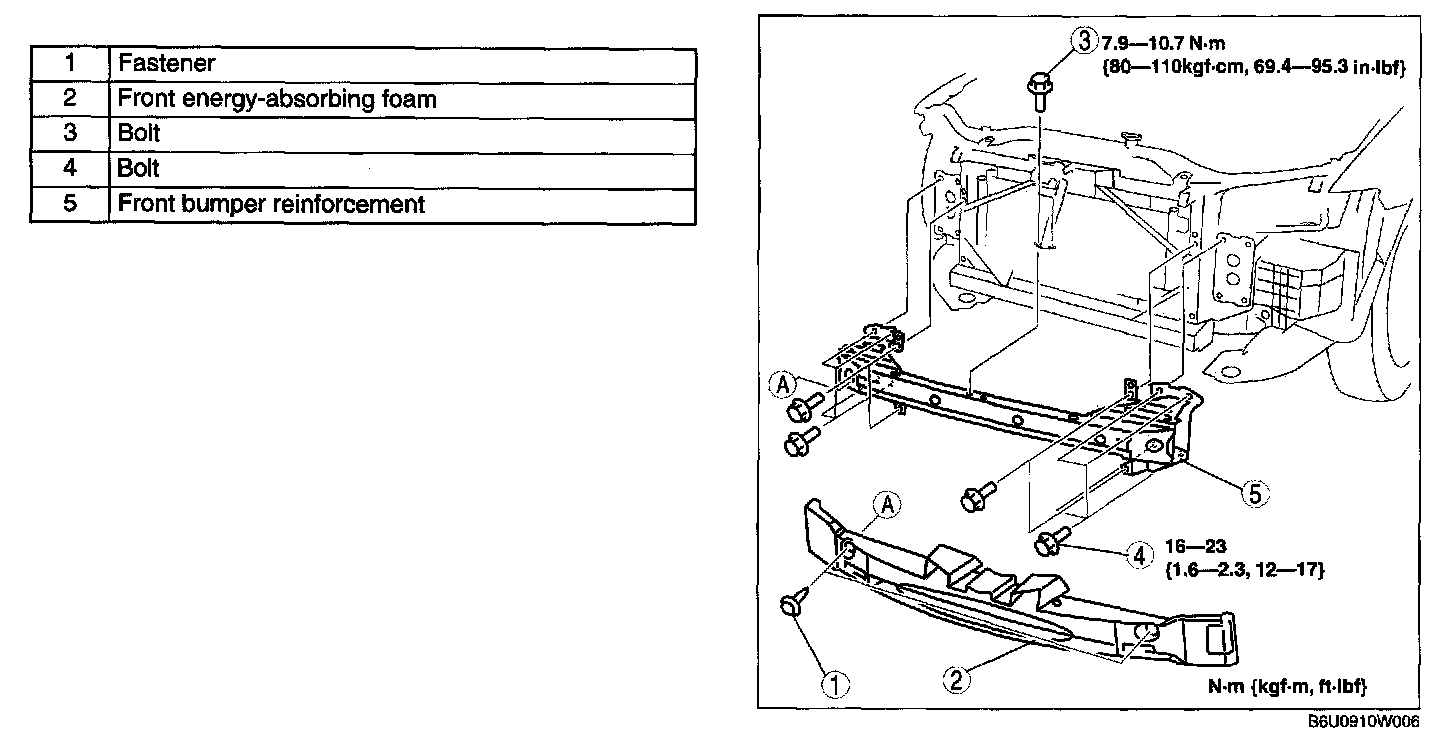

Remove in the order indicated in the table.
6.
Install in the reverse order of removal.
