Procedures

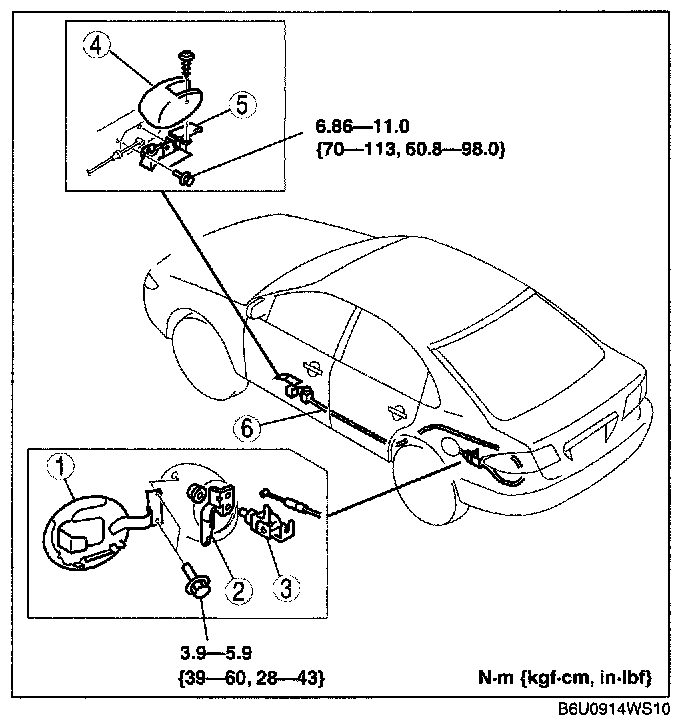

FUEL-FILLER LID AND OPENER REMOVAL/INSTALLATION

1. To remove the fuel-filler lid opener, remove the left side trunk side trim.
2. To remove the fuel-filler lid opener cable, perform the following and partially peel back the floor covering.
1. Remove the driver-side front seat.
2. Remove the driver-side front scuff plate.
3. Remove the driver-side rear scuff plate.
4. Remove the driver-side B-pillar lower trim.
5. Remove the driver-side tire house trim.

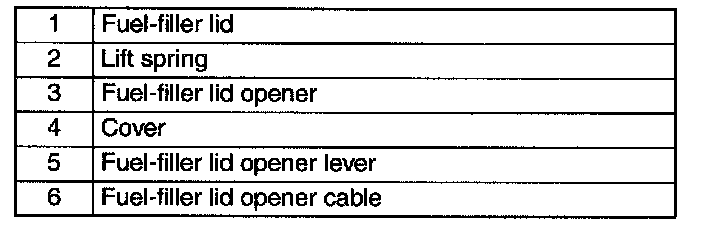

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Adjust the fuel-filler lid.
