Lower Panel

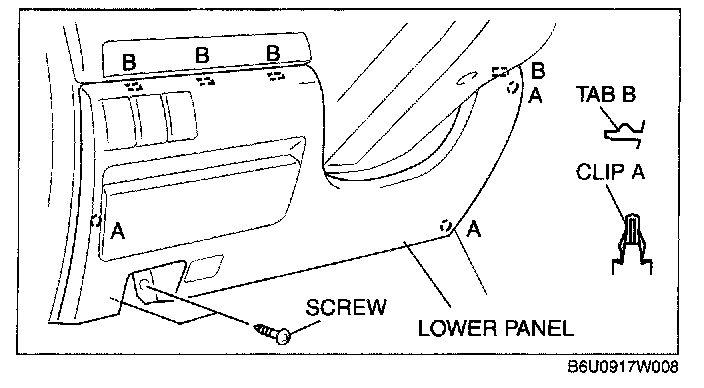

LOWER PANEL REMOVAL/INSTALLATION

1. Remove the hood release lever. (See Hood Release Lever Removal Note.)




2. Remove the screws.
3. Pull the lower panel outward, disengage clips A and tabs B from the dashboard, and remove the lower panel.
4. Install in the reverse order of removal.
