Side Panel

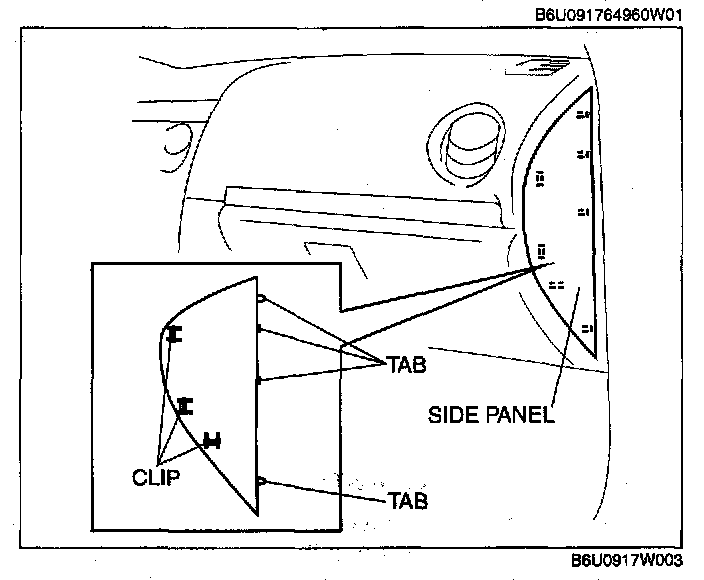

SIDE PANEL REMOVAL/INSTALLATION




1. Disengage clips using a tape-wrapped flathead screwdriver.
2. Pull the side panel outward, then disengage tabs from dashboard, and remove the side panel.
3. Install in the reverse order of removal.
