Door Lock Cylinder Switch: Service and Repair
FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION 1.
Disconnect the rod.
2.
Remove the front outer handle.
3.

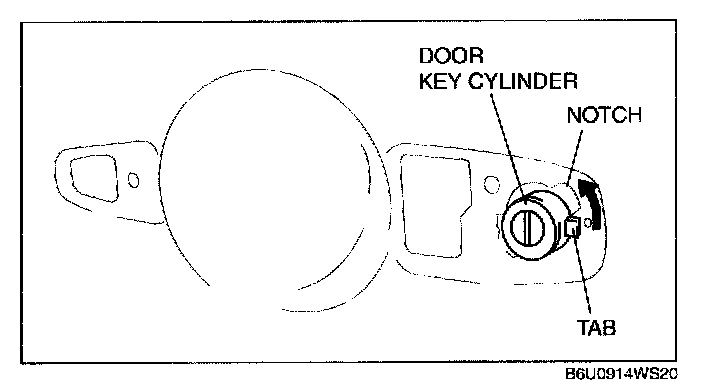

Turn the key cylinder in the direction indicated by the arrow and move the tab to the notch.
4.
Pull the key cylinder outward to remove it
5.
Install in the reverse order of removal.
