Trunk / Liftgate Lock Cylinder: Testing and Inspection

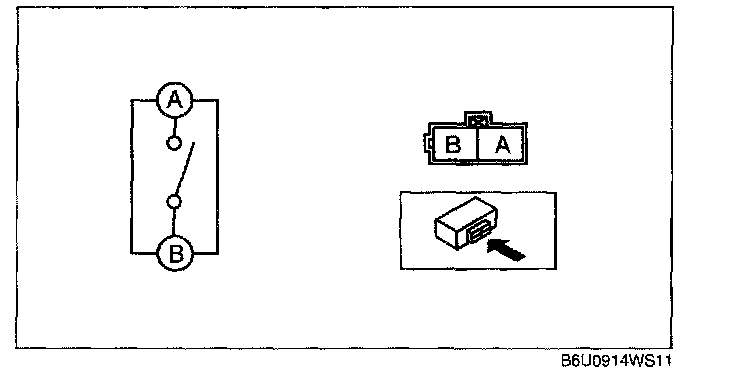

TRUNK KEY CYLINDER SWITCH INSPECTION [4SD] 1.
Remove the trunk key cylinder switch.
2.

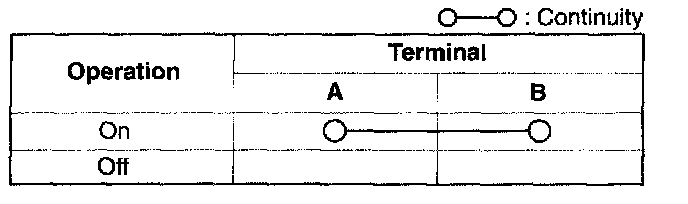

Inspect for continuity between the trunk key cylinder switch terminals using an ohmmeter.
-
If not as specified, replace the trunk key cylinder switch.
