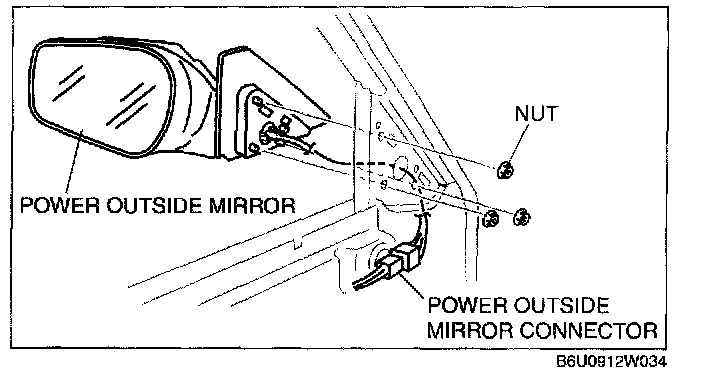

Power Outside Mirror Removal/Installation
POWER OUTSIDE MIRROR REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the inner garnish.
3.
Remove the front door trim.
4.
Disconnect the power outside mirror connector.
5.
Remove the nuts.
6.
Remove the power outside mirror.
7.
Install in the reverse order of removal.
