Auto-Dimming Mirror

AUTO-DIMMING MIRROR INSPECTION

1. Measure the voltage at each terminal (other than terminal F).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.

2. Disconnect the negative battery cable.
3. Inspect the auto-dimming mirror connector for continuity at terminal F.
4. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the auto-dimming mirror.

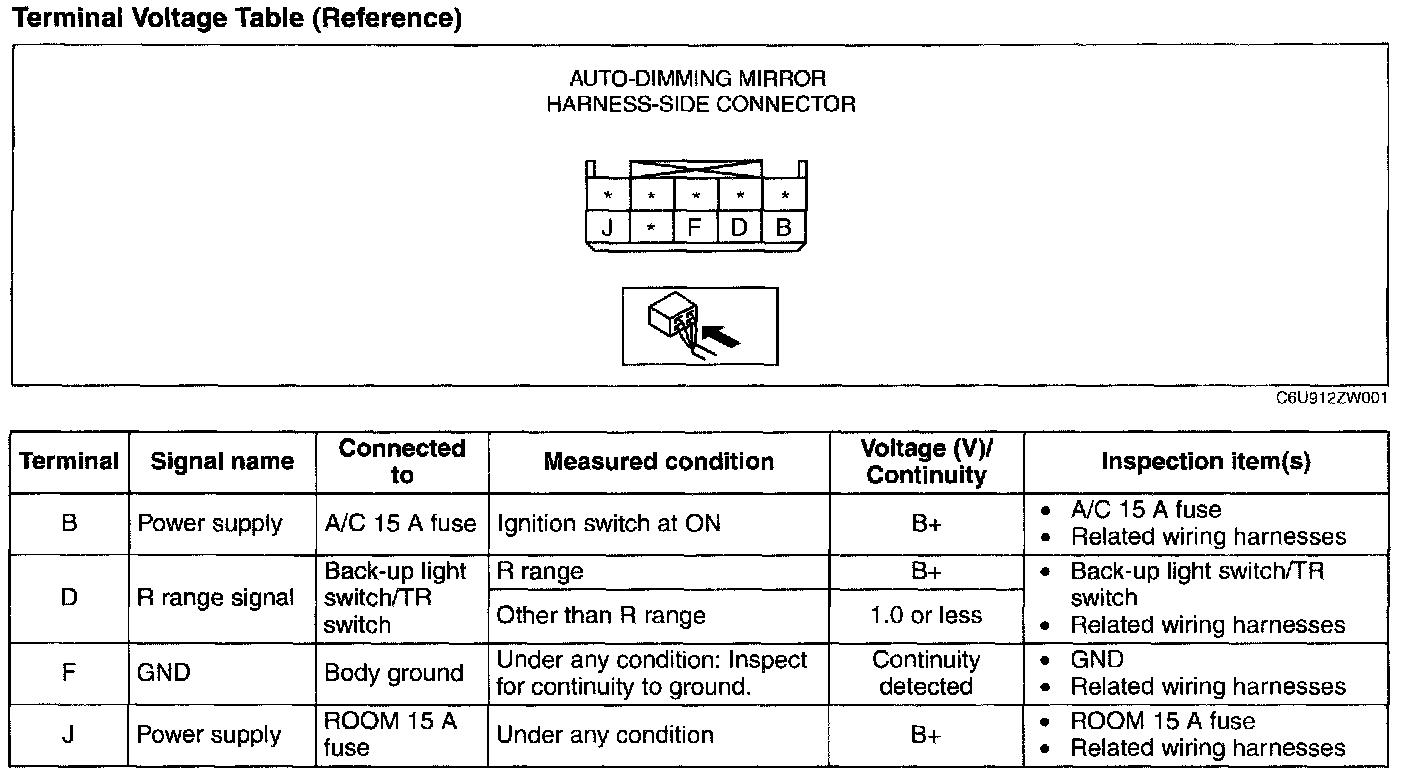

Terminal Voltage Table (Reference)
