Sunroof Unit Removal/Installation

SUNROOF UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the headliner.
3. Remove the glass panel.
4. Remove the over head console bracket. (5HB, WGN)
5. Disconnect the front and rear drain hose from the sunroof frame.

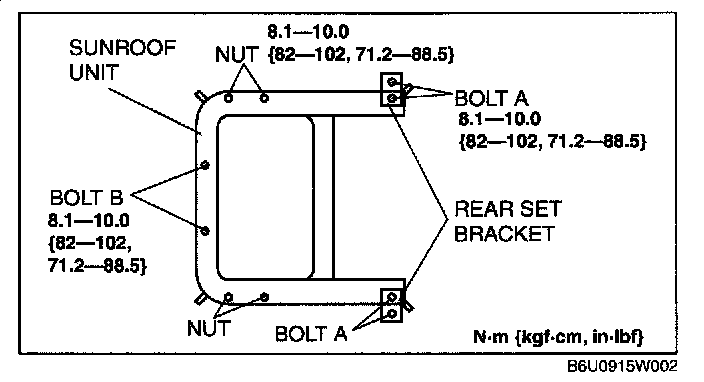

6. Remove bolts A. and then remove the rear set bracket.
7. Remove bolts B and nuts, and then remove the sunroof unit.
8. Install in the reverse order of removal.
9. Adjust the glass panel.
