Slide Motor Inspection

SLIDE MOTOR INSPECTION

1. Disconnect the slide motor connector.

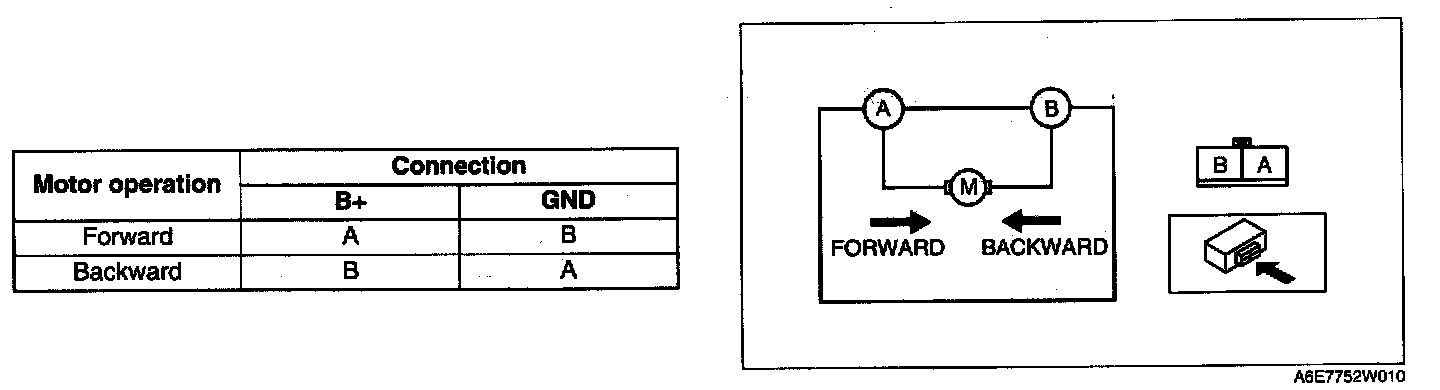

2. Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation
- If not as specified, replace the seat cushion frame.
