WDS Scan Tool

Active Command Modes Procedure

Note: When driving, the ABS motor and each valve automatically turn ABS_POWER on, and then each command on. ABS_POWER regulates the power supply for the ABS motor and 8 valves.

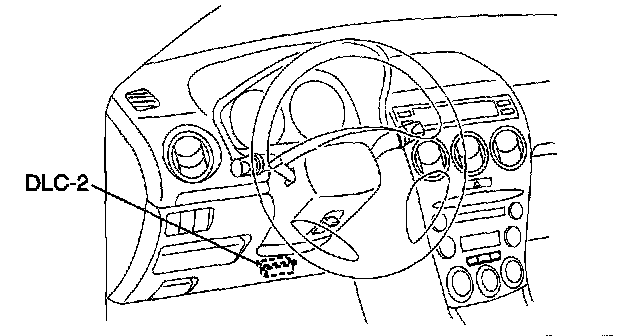

1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector.
2. Turn the ignition key to ON (engine off) or start engine.
3. Activate active command modes using WDS or equivalent.

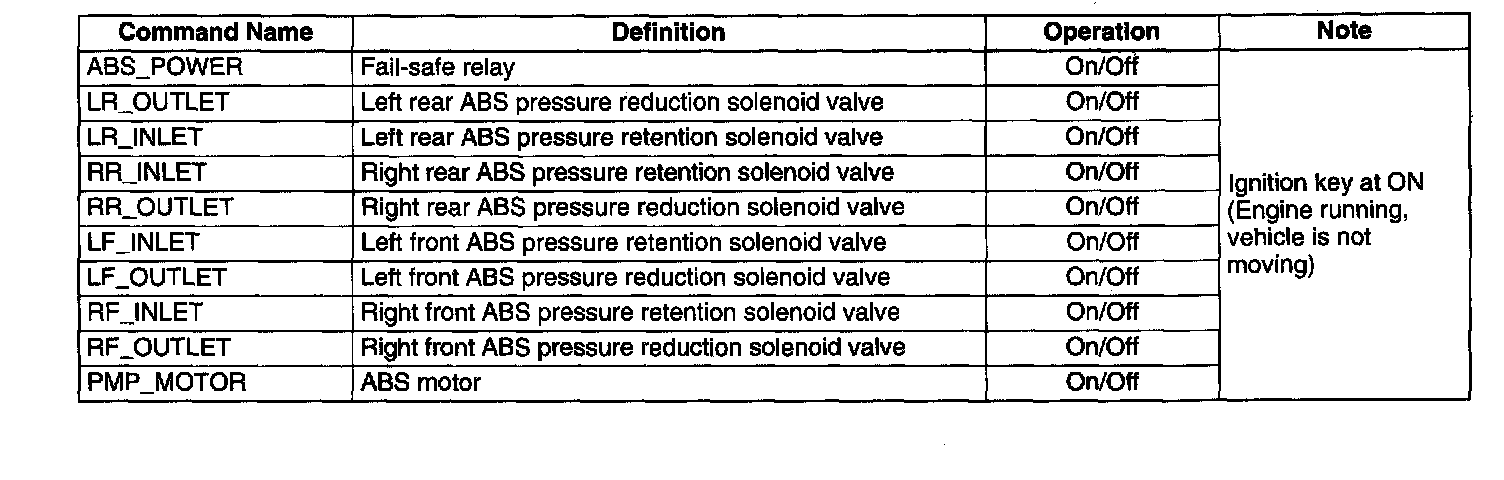

Active Command Modes Table
