Traction Control Switch: Testing and Inspection

TCS OFF SWITCH INSPECTION

1. Remove the TCS OFF switch.

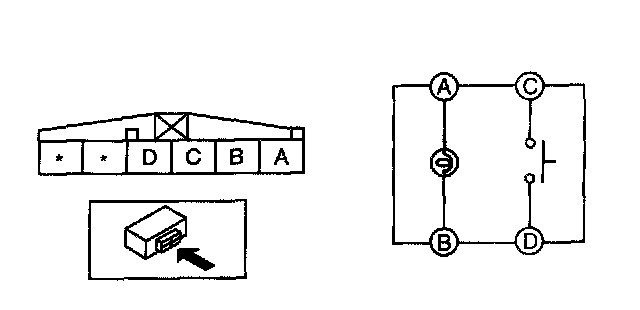

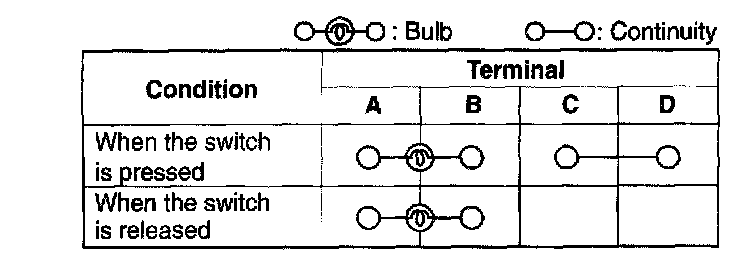

2. Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
^ If not as specified, replace the TCS OFF switch.
