Hydraulic System Junction Block: Service and Repair

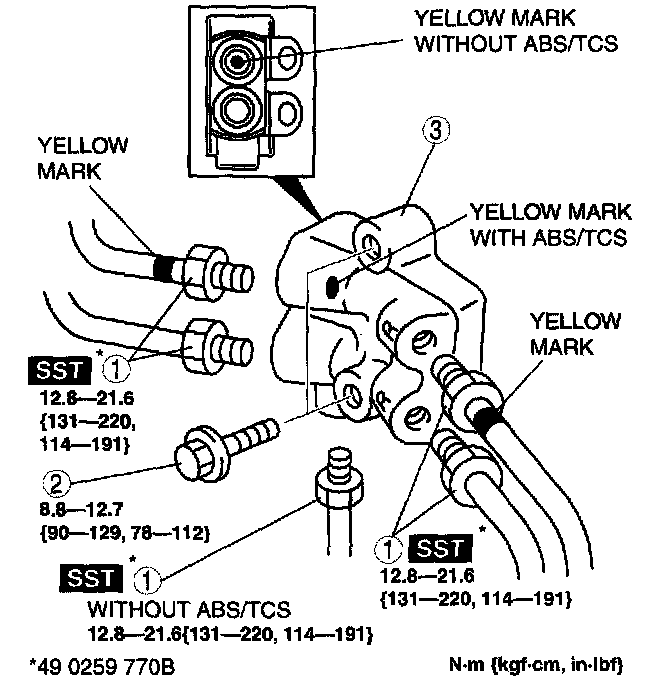

DUAL PROPORTIONING VALVE (WITHOUT ABS/TCS) AND BRAKE PIPE JOINT (WITH ABS/TCS) REPLACEMENT

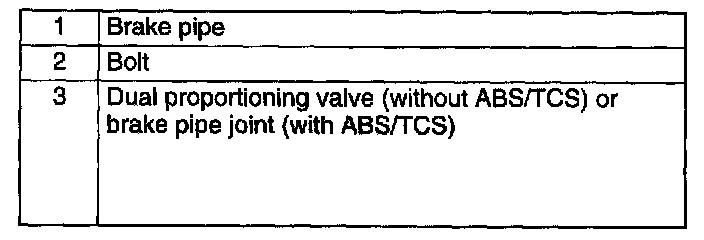

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Dual Proportioning Valve (Without ABS/TCS) or Brake Pipe Joint (With ABS/TCS) Installation Note

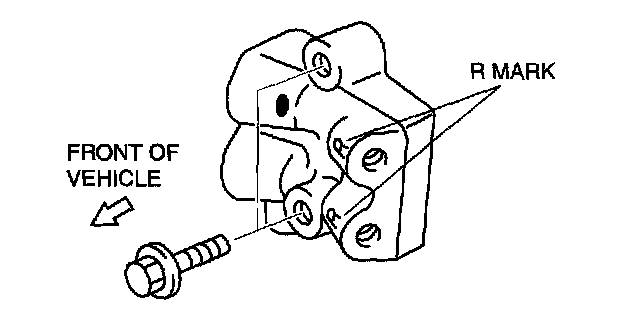

1. Install the dual proportioning valve (without ABS/ TCS) or brake pipe joint (with ABS/TCS) so that the R mark faces the left side of the vehicle.
