Brake Lamp

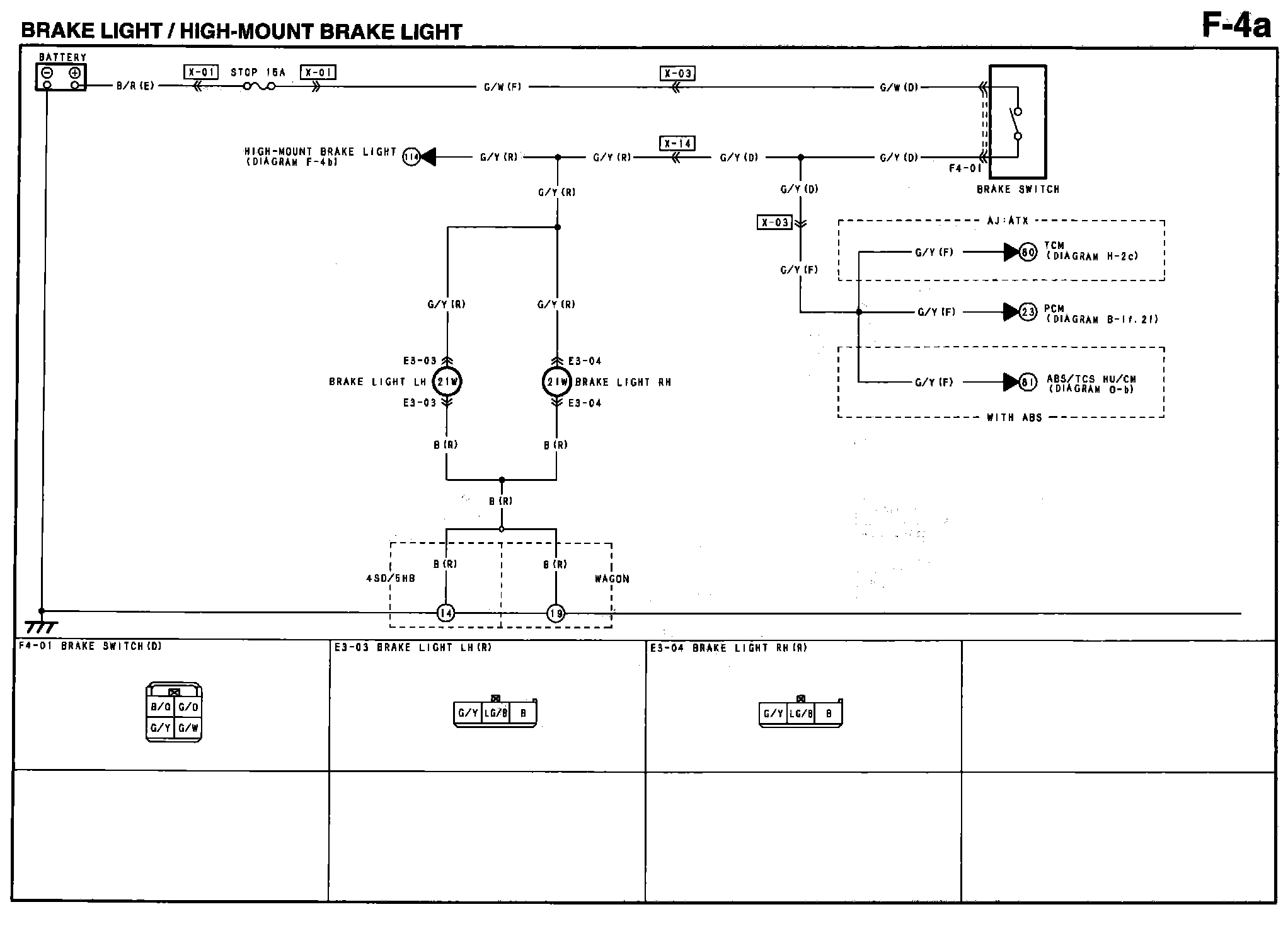

Diagram F-4a:




Routing View F-4a:

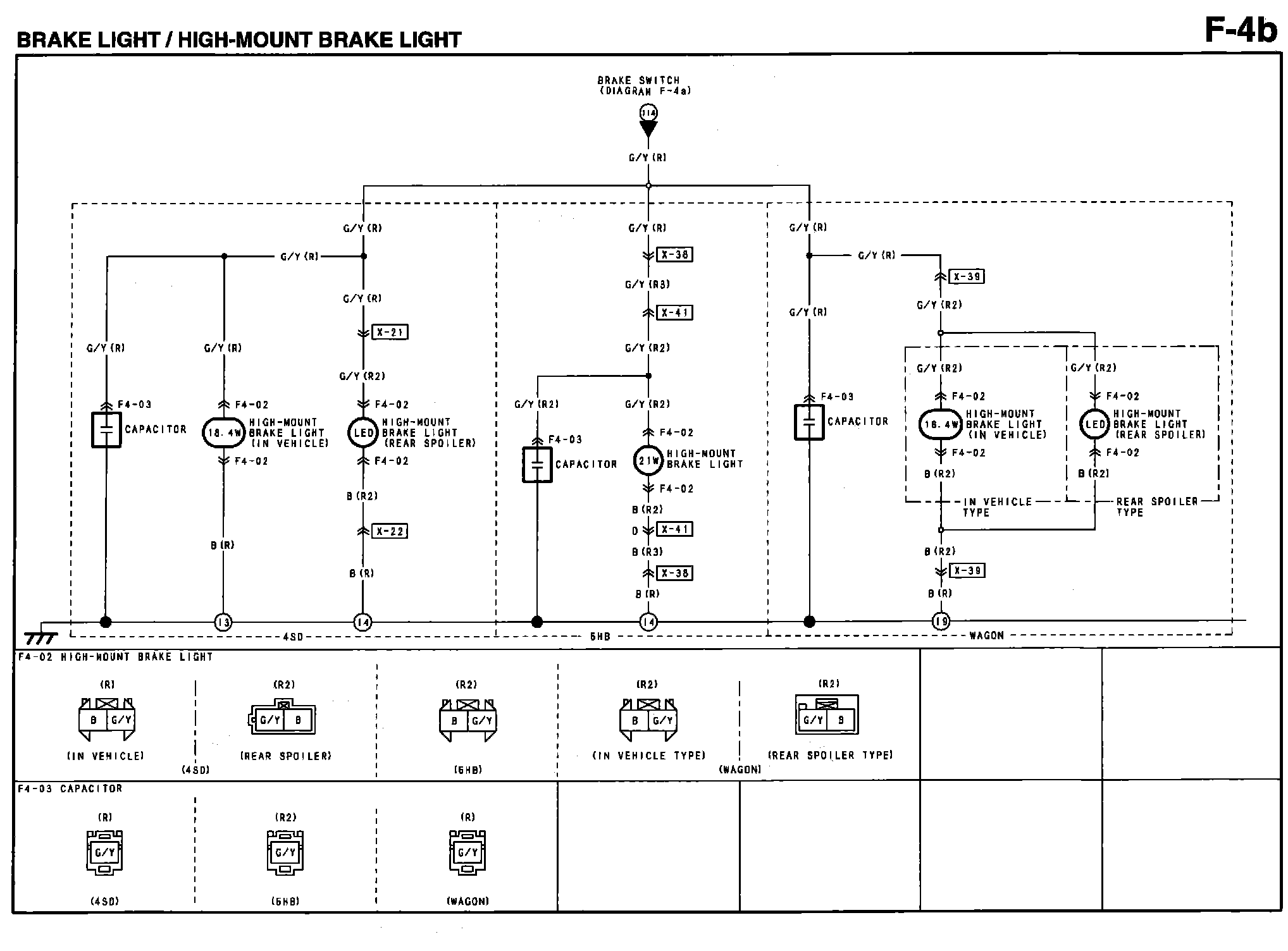

Diagram F-4b:

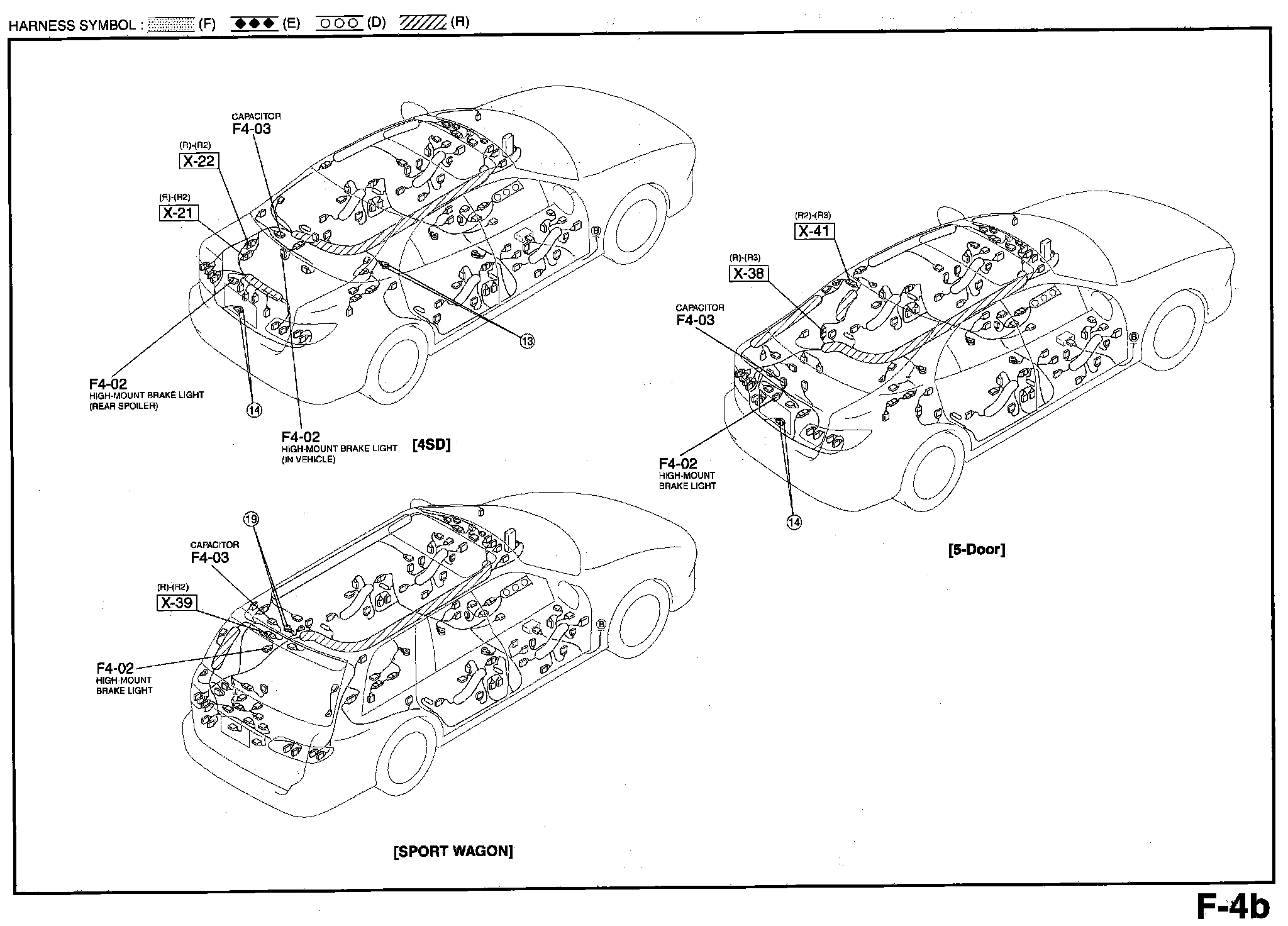

Routing View F-4b:







Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
