Valve Guide: Service and Repair
VALVE GUIDE REPLACEMENTValve Guide Removal

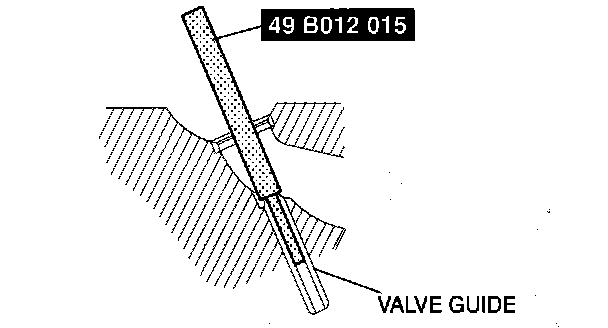

1. Remove the valve guide from the combustion chamber side using the SST.
Valve Guide Installation

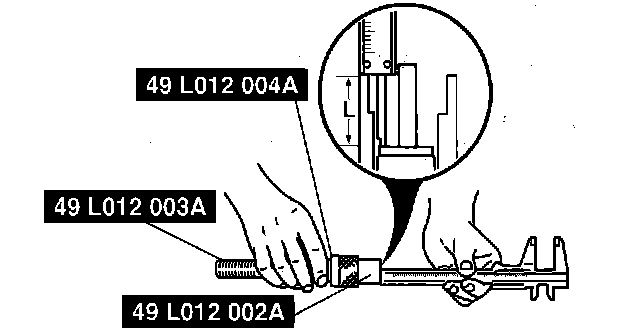

1. Assemble the SSTs so that depth L is as specified.
Depth L 12.2 - 12.8 mm {0.481 - 0.503 inch}

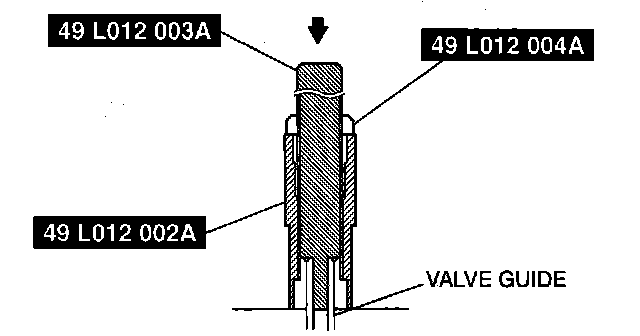

2. Tap the valve guide in from the side opposite the camshaft side until the SSTs contacts the cylinder head.

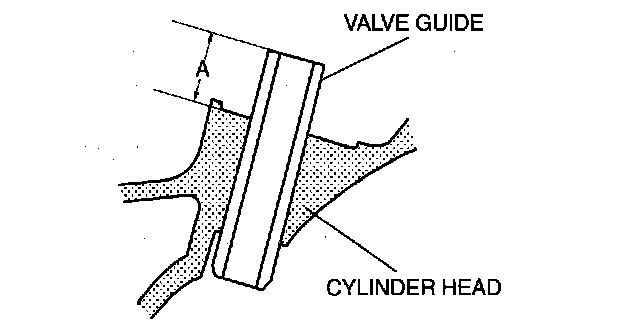

3. Verify that the valve guide protrusion height (dimension A) is within the specification.
Standard height 12.2 - 12.8 mm {0.481 - 0.503 inch}
