Piston Assembly Note

Piston Assembly Note

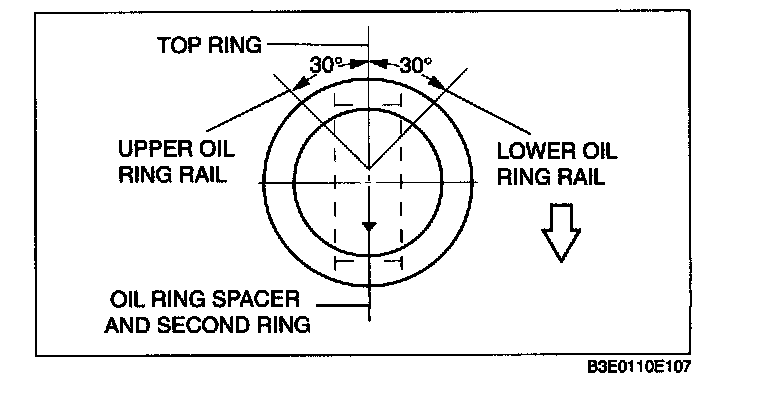

1. Position the end gap of each ring as indicated in the figure.

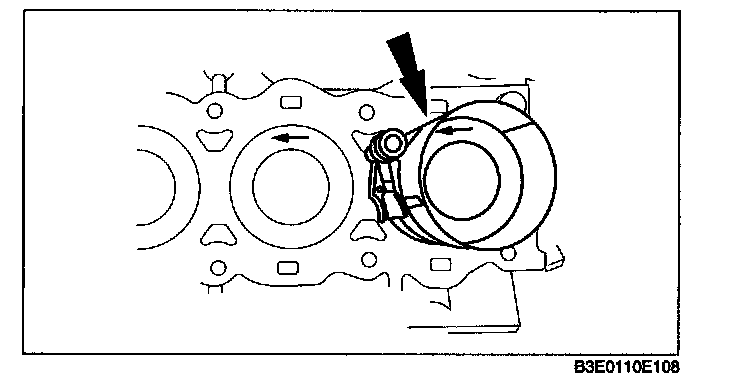

2. Insert the piston and connecting rod into the cylinder with the arrow mark to front of the engine.
