Water Pump: Service and Repair
WATER PUMP REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Drain the engine coolant.
3.
Remove the
drive belt.
4.

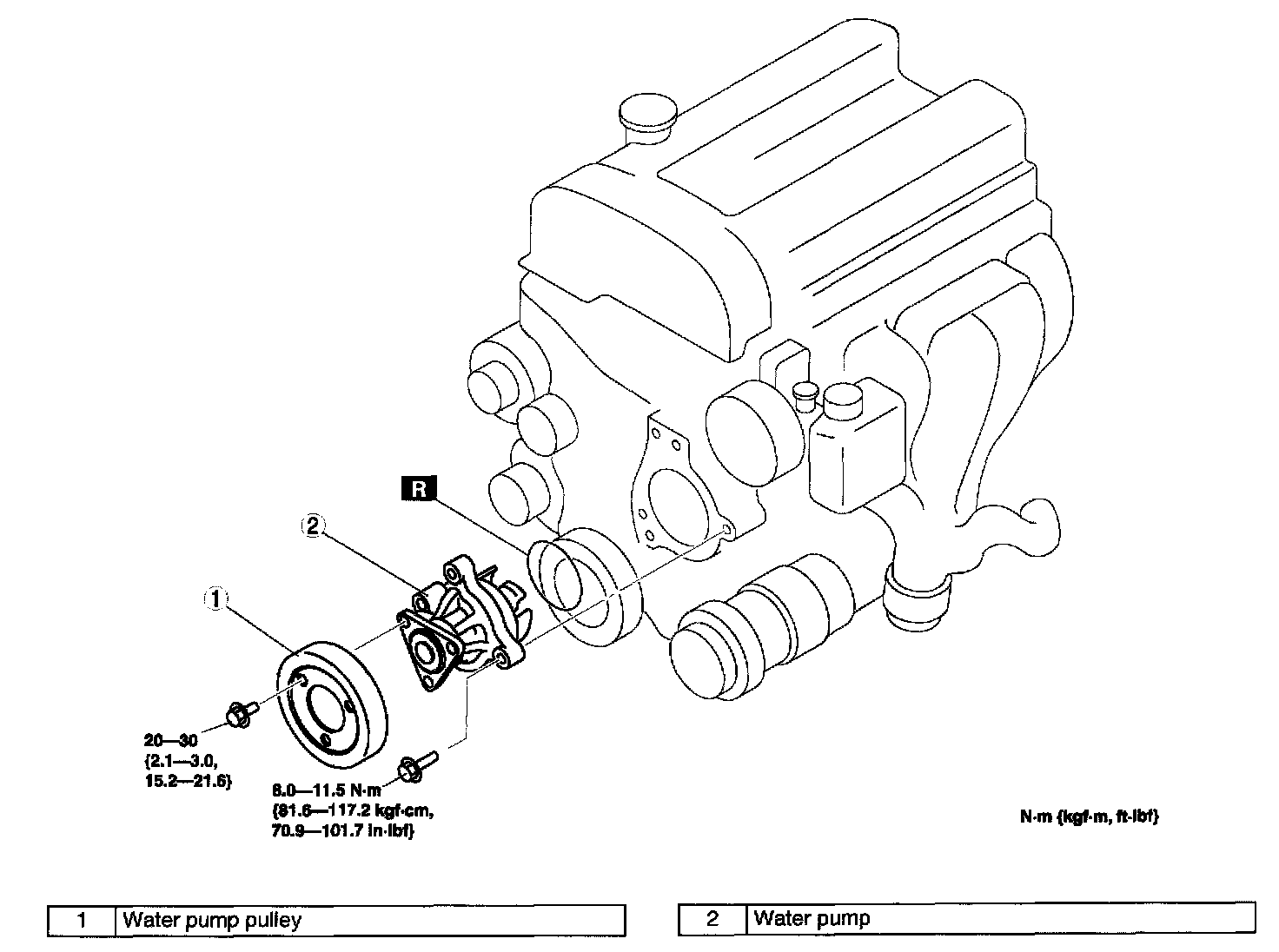

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
6.
Add the engine coolant.
