Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

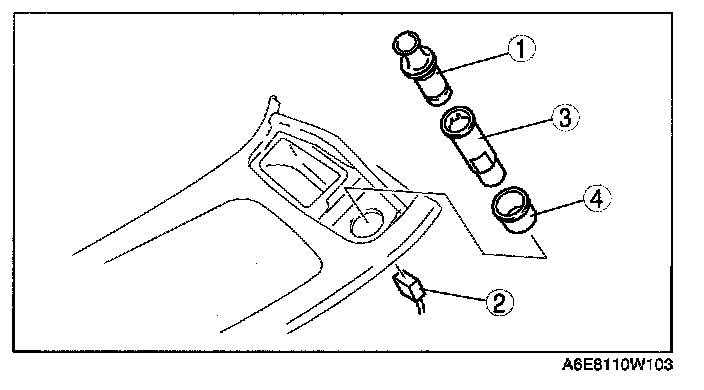

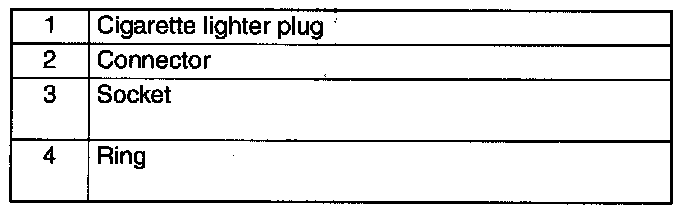

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Socket Removal Note

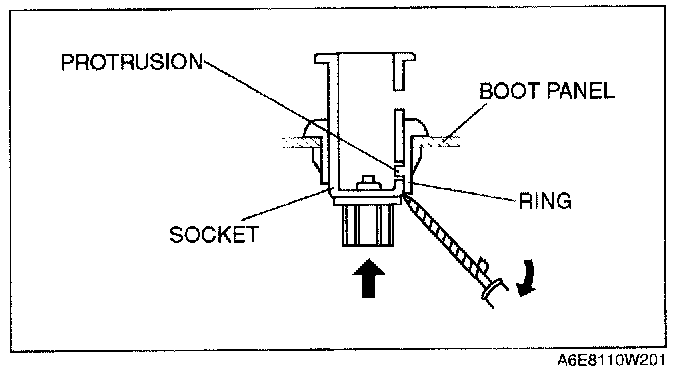

1. Insert a tape-wrapped flathead screwdriver into the socket hole, then push on the ring protrusion to lift the socket toward you.

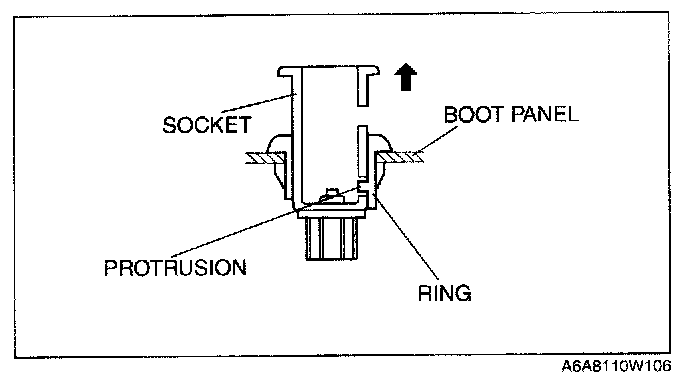

2. As shown in the figure, lift out the socket until the ring protrusion locks into the lower socket hole.
3. Remove the boot panel.

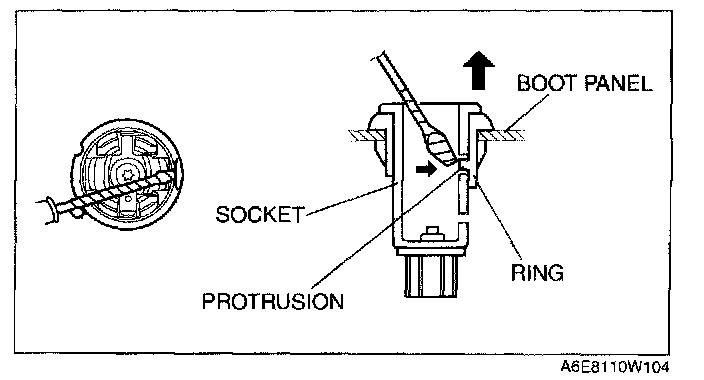

4. Front behind the boot panel, slide a tape-wrapped flathead screwdriver in between the socket and the ring protrusion.
5. While twisting the ring protrusion with the screwdriver, push out and remove the socket.

Ring Removal Note

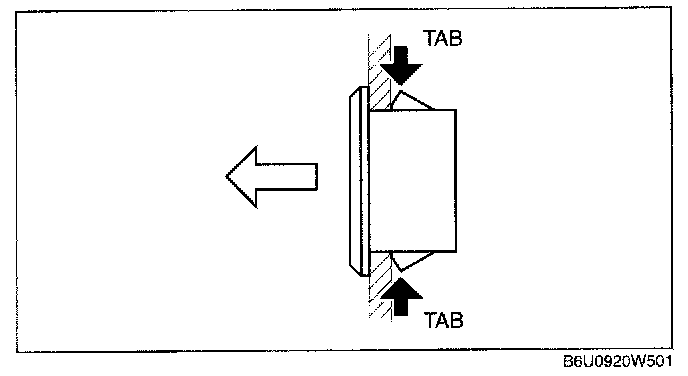

1. Pull the ring forward while squeezing the tabs.
