Cargo Lamp: Service and Repair

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION [5HB, WGN]

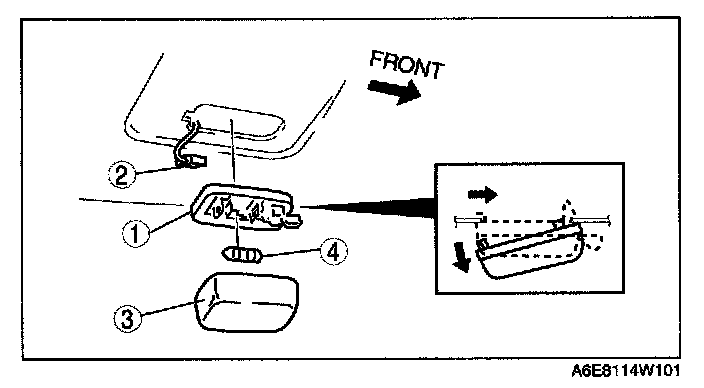

5HB

1. Disconnect the negative battery cable.

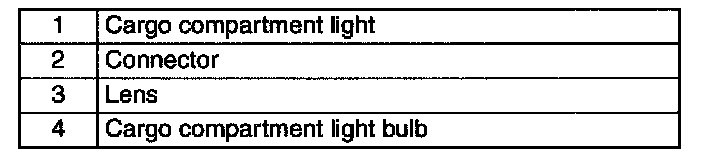

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

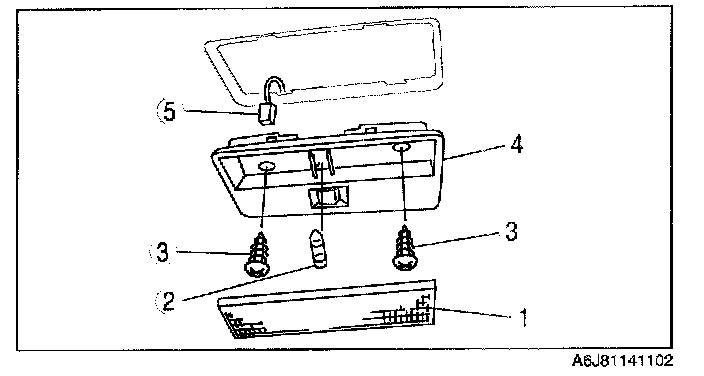

WGN

1. Disconnect the negative battery cable







2. Remove in the order indicated in the table
3. Install in the reverse order of removal

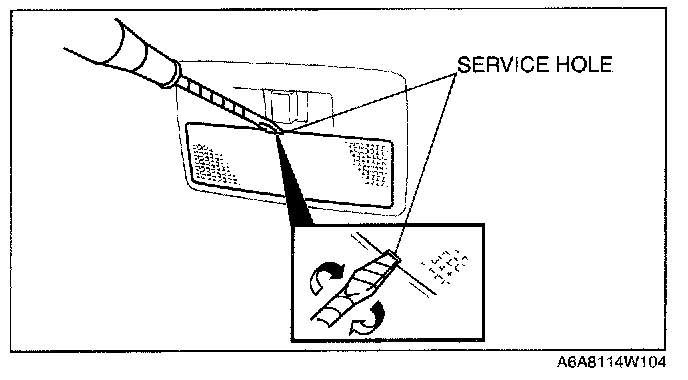

Lens removal note




1. Insert a tape-wrapped flathead screwdriver into the service hole
2. Twist the flathead screwdriver as indicated by the arrow to remove the lens.
