Headlamp: Adjustments

HEADLIGHT ADJUSTMENT

1. Adjust the tire air pressure to the specification.
2. Position the unloaded vehicle on a flat, level surface.
3. Seat one person in the driver's seat.
4. Position the vehicle straight ahead and perpendicular to a wall.

Interior Lighting System Location Index Part 1:

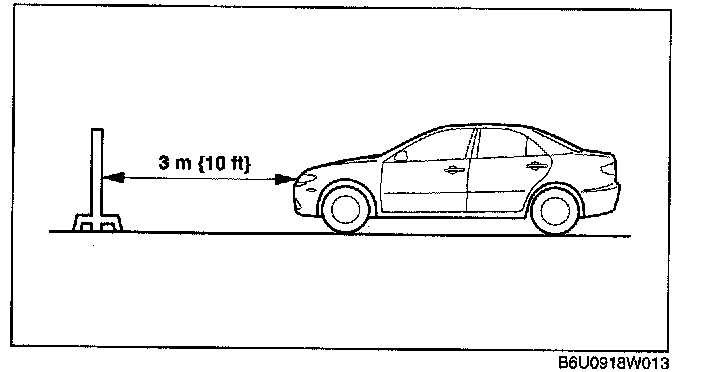

5. Set the headlights 3 m {10 ft} from the white screen.
6. While adjusting one headlight, mask the other.
7. Start the engine to charge the battery.
8. Turn on the lower-beam headlight.

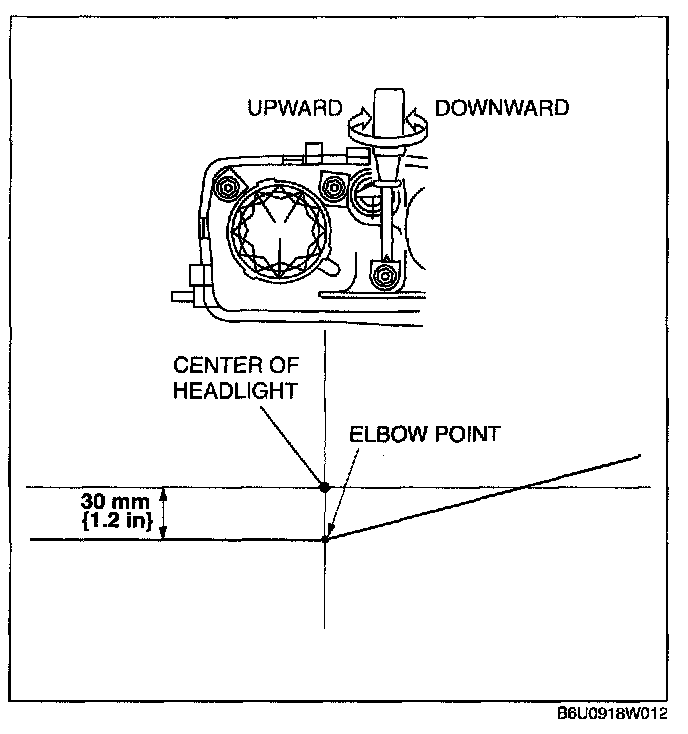

9. Adjust the headlights as shown in the figure.
