Rear MAP Light
REAR MAP LIGHT REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.

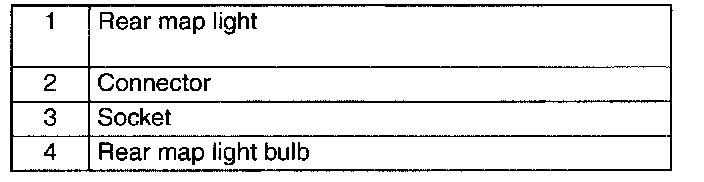

Remove in the order indicated in the table.
3.
Install in the reverse order of removal.

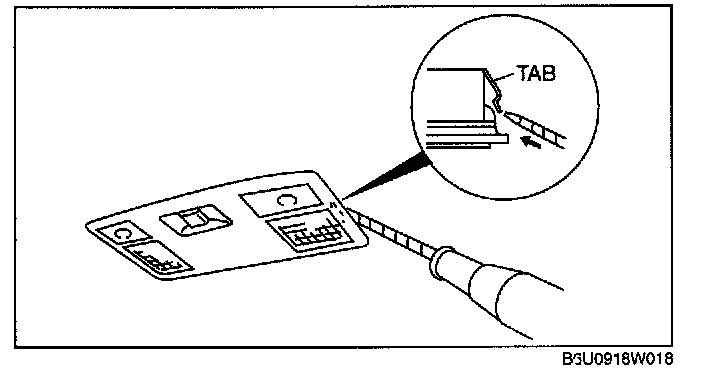

Rear Map Light Removal Note 1.
Insert a tape-wrapped flathead screwdriver into the gap between the headliner and the rear map light.
2.
Push the tabs to remove the rear
map light.
