Inboard Combination Light

INBOARD COMBINATION LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the trunk lid trim.

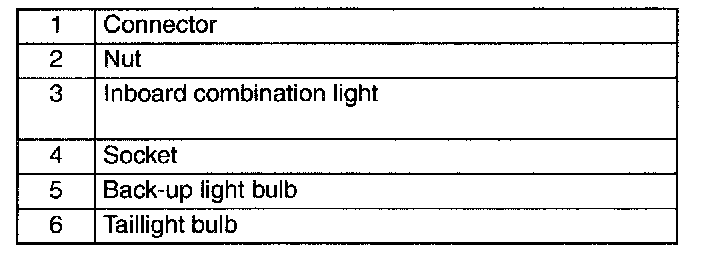

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Inboard Combination Light Installation Note

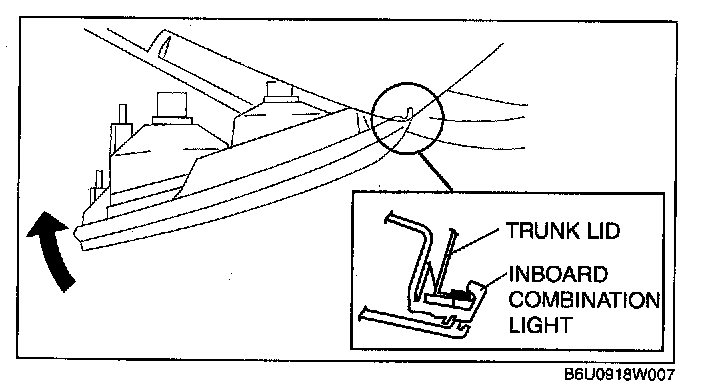

1. Insert the inboard combination light into the trunk lid as shown in the figure, then pivot it inward and fix in place.

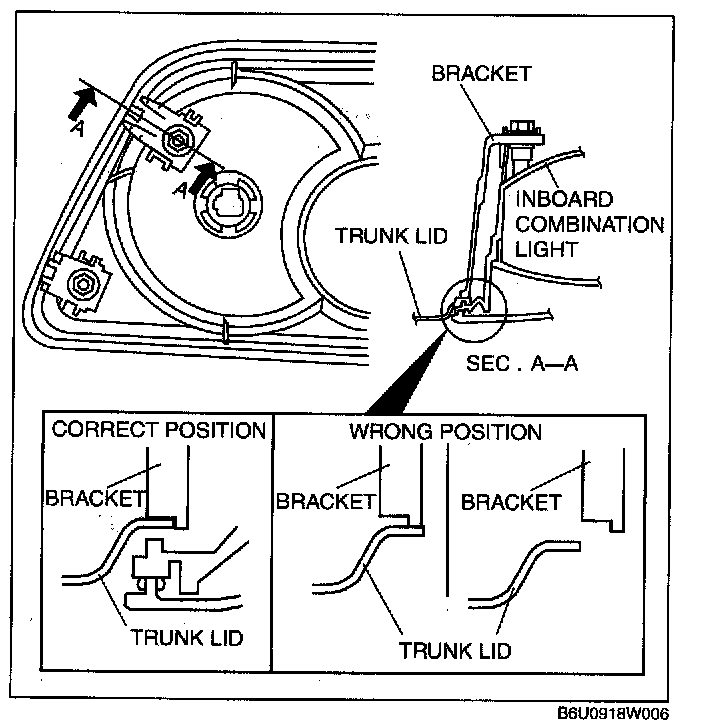

2. Place the bracket in the proper position as shown in the figure and press it to the trunk lid to attach.
