Turn Signal Flasher: Testing and Inspection

FLASHER CONTROL MODULE INSPECTION

1. Connect the connector to the flasher control module.
2. Connect the negative battery cable.
3. Measure the voltage at the flasher control module using a voltmeter.
- When inspecting terminal F for continuity, disconnect the flasher control module connector.

4. If the value are not as specified in the Terminal Voltage List (Reference), inspect the parts under "Action" and related wiring harnesses.
5. If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the flasher control module.

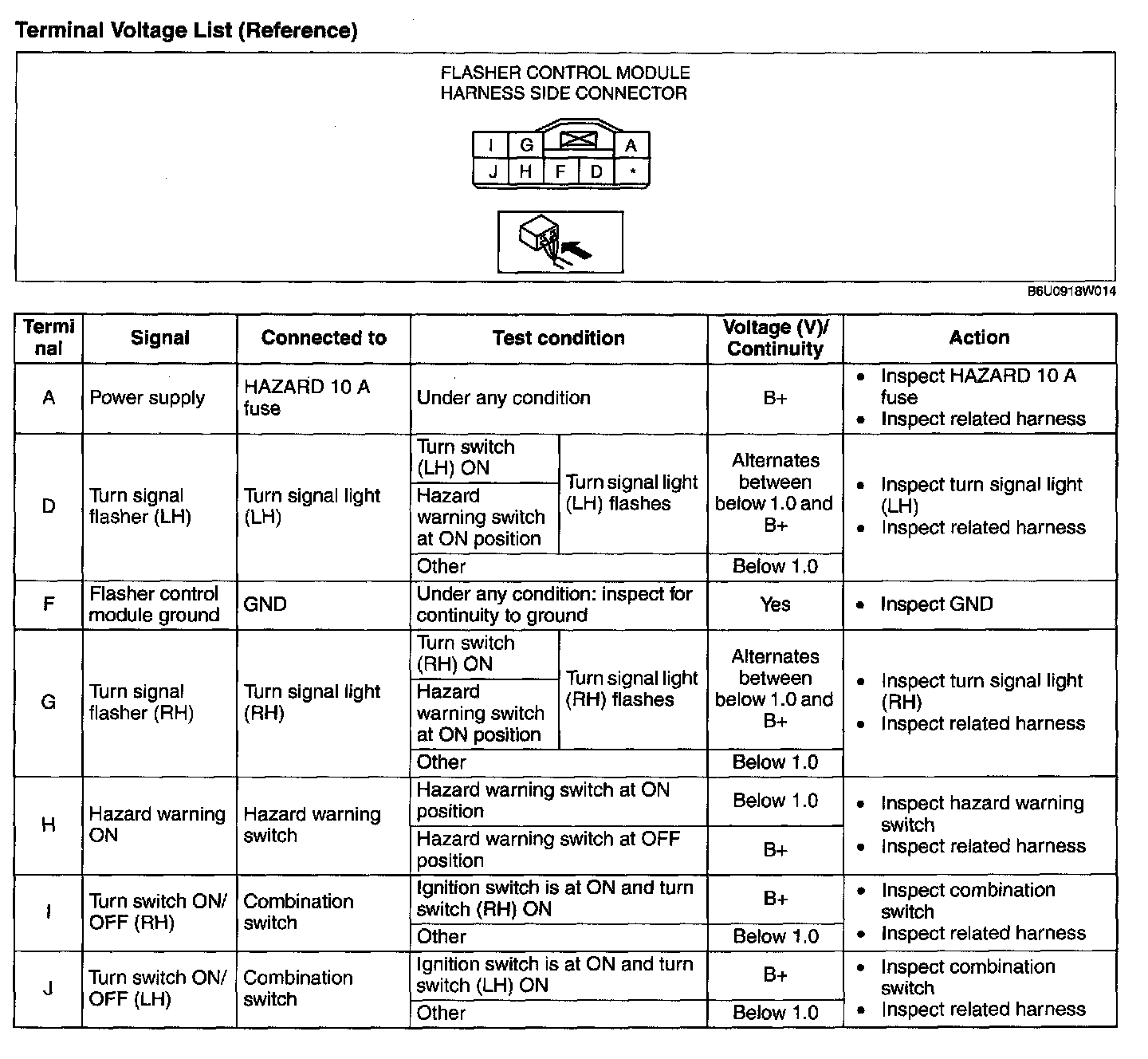

Terminal Voltage List (reference):




Terminal Voltage List (Reference)
