Drive Belt: Testing and Inspection
DRIVE BELT INSPECTION Note -
Front and water pump
drive belt deflection/tension inspection is not necessary because of the use of the front drive belt auto tensioner.
Front Drive Belt 1.

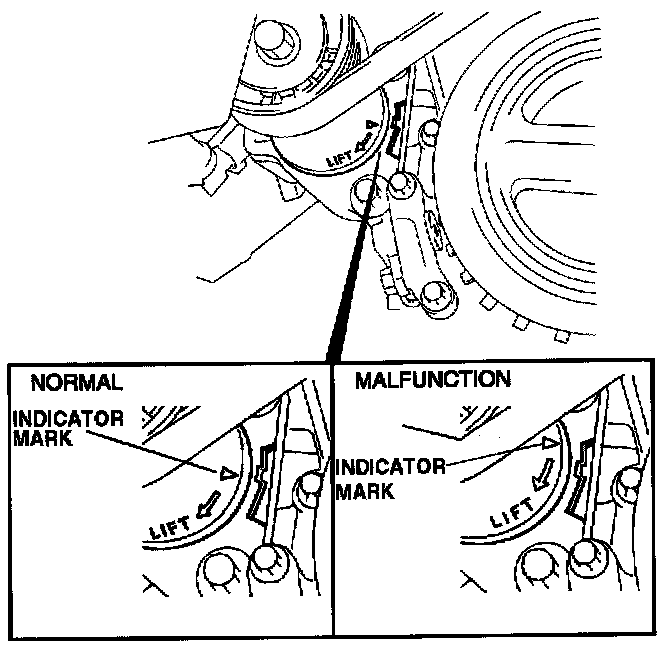

Verify that the
drive belt auto tensioner indicator mark does not exceed the limit.
-
If it exceeds the limit, replace the
drive belt.
