PID/DATA MONITOR Table (Reference)

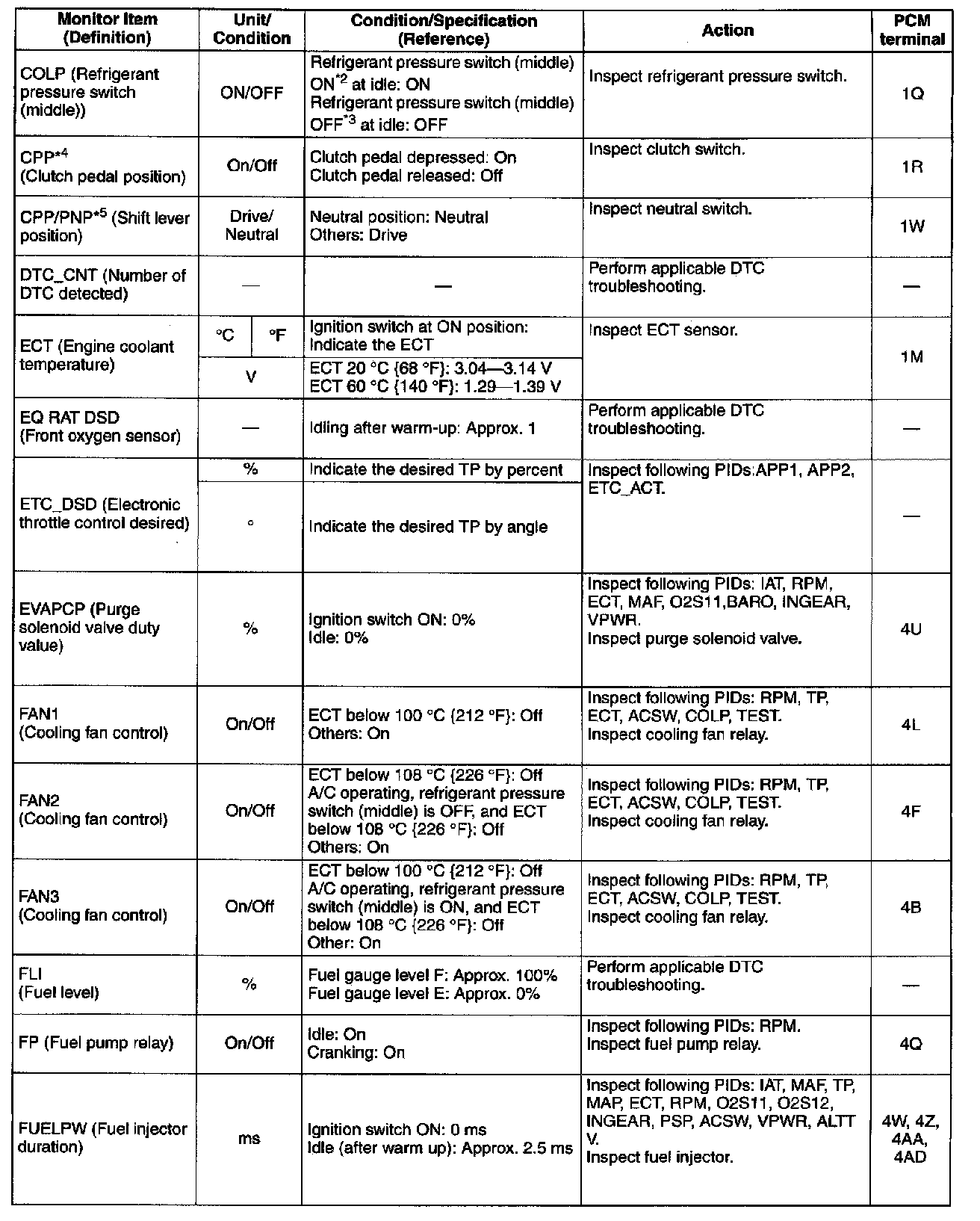

PID/DATA MONITOR Table (Reference) Part 1:

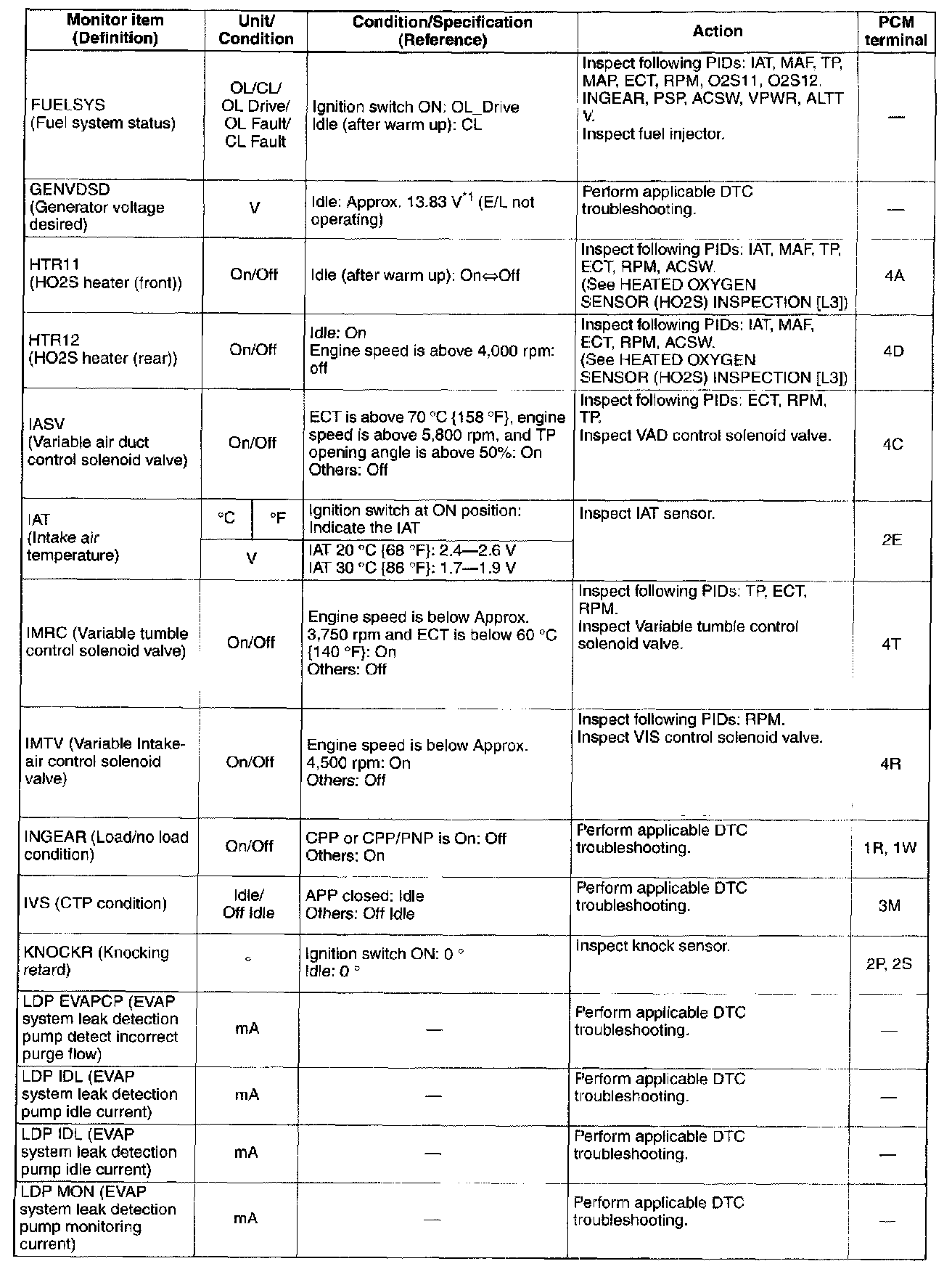

PID/DATA MONITOR Table (Reference) Part 2:

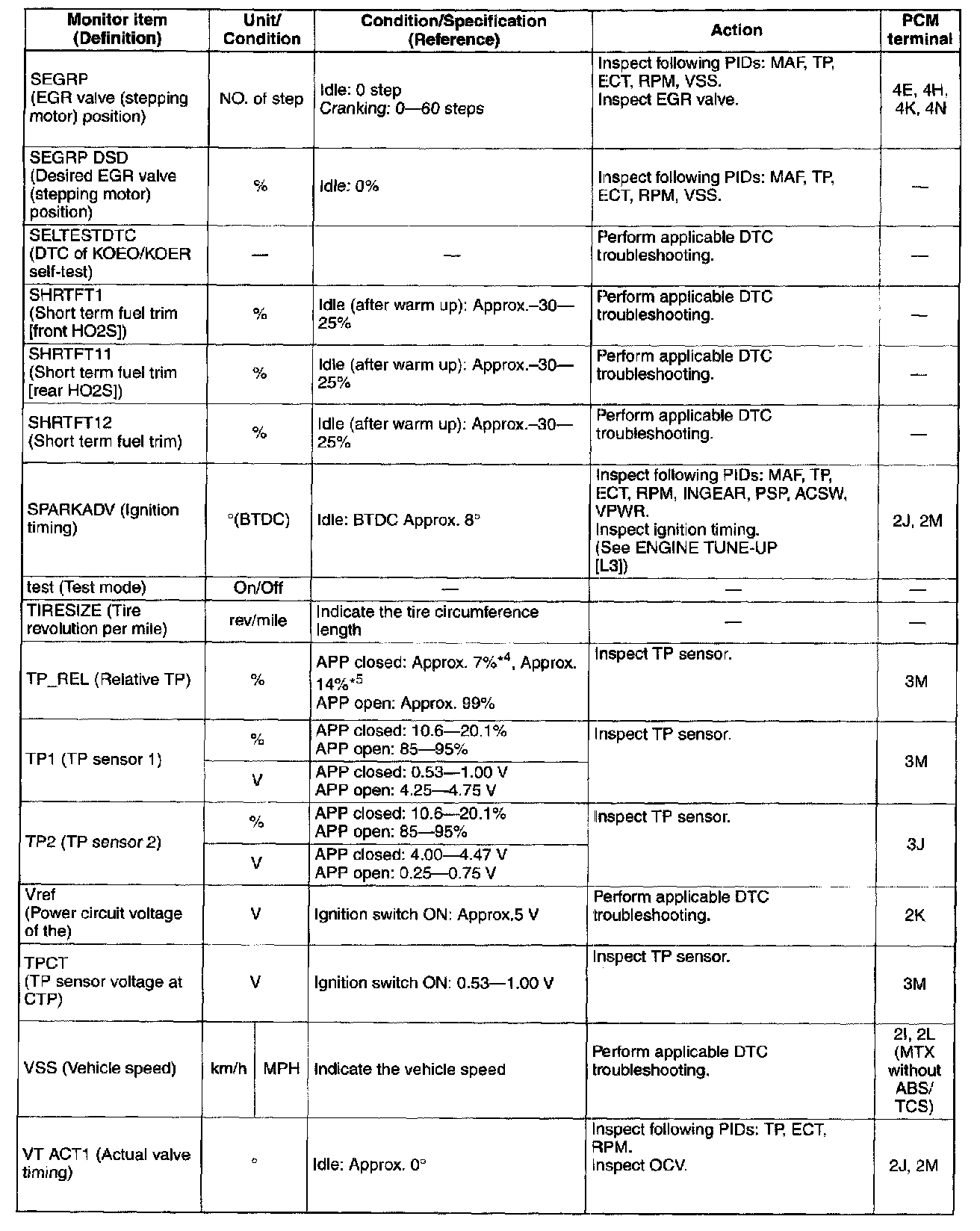

PID/DATA MONITOR Table (Reference) Part 3:




PID/DATA MONITOR Table (Reference) Part 4:




PID/DATA MONITOR Table (Reference) Part 5:

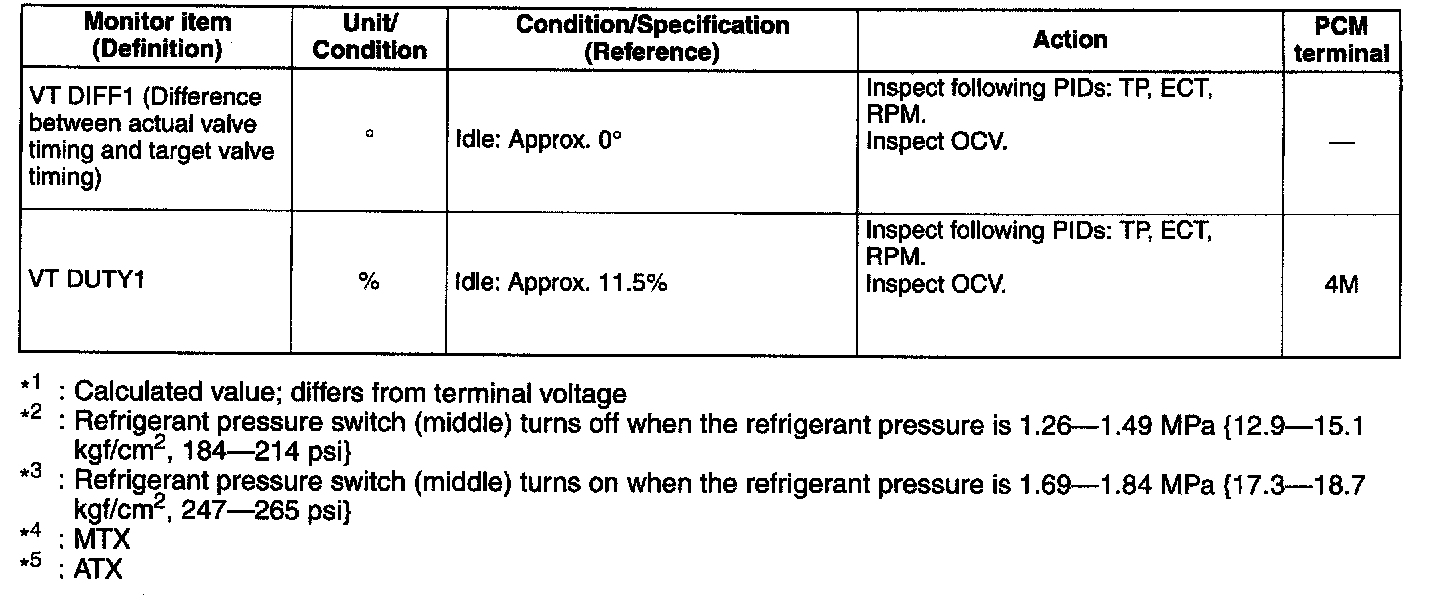

PID/DATA MONITOR Table (Reference) Part 6:
