Liquid Vapor Separator: Testing and Inspection

CATCH TANK INSPECTION
1. Remove the catch tank.

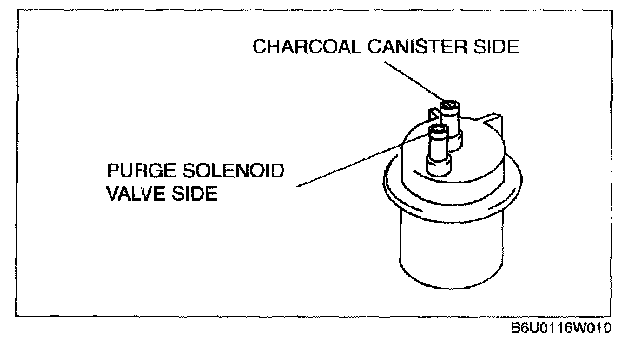

2. Plug the purge solenoid valve side port of the catch tank.




3. Blow from the charcoal canister side port and verify that there is no air leakage from the case.
- If not as specified, replace the catch tank.
- If as specified carry out the "Circuit Open/Short Inspection".
