Variable Induction Check Valve: Testing and Inspection

VARIABLE AIR DUCT (VAD) CHECK VALVE (ONE-WAY) INSPECTION




1. Remove the VAD check valve (one-way) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION)

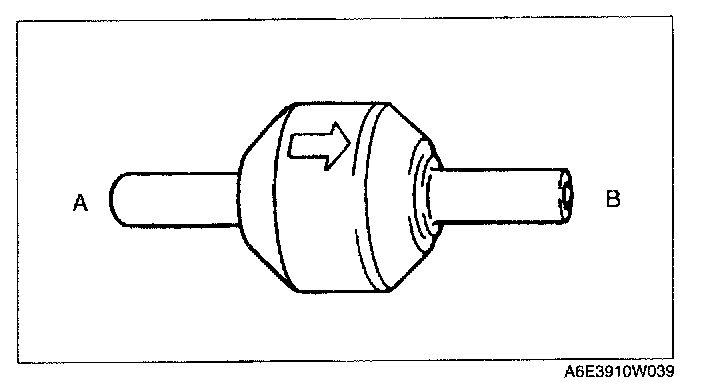

2. Blow through A and verify that air flows from B.
3. Blow through B and verify that air does not flow from A
- If not as specified, replace the VAD check valve (one-way).
