Oscilloscope Patterns and Waveforms

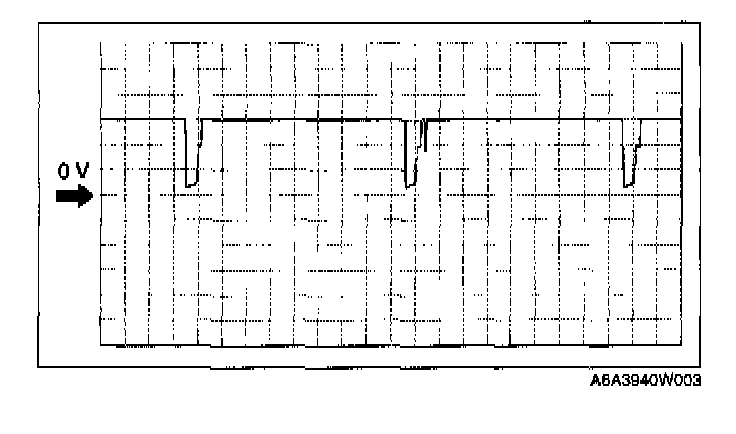

Inspection Using An Oscilloscope (Reference) IGT1, IGT2 control signals PCM terminals IGT1 (No.1 and No.4): 1A(+) - 1D(-)
IGT2 (No.2 and No.3): 1B(+) - 1C(-)
Oscilloscope setting -
4 V/DIV (Y),
0.01 ms/DIV (X), DC range
Vehicle condition -
Idle after warm up (engine speed approx.
650 rpm, no load, P/S off, A/C off)
