Selector Cable Adjustment

SELECTOR CABLE ADJUSTMENT





1. Remove the center console.
2. Shift the selector lever to P position

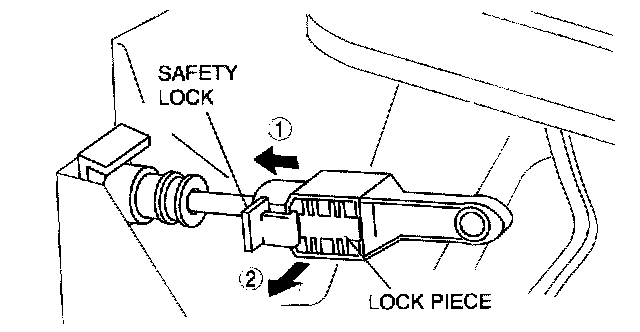

3. Unlock the lock piece of the selector cable (selector lever side) in the order shown.
4. Verify that the manual shaft is in P position.

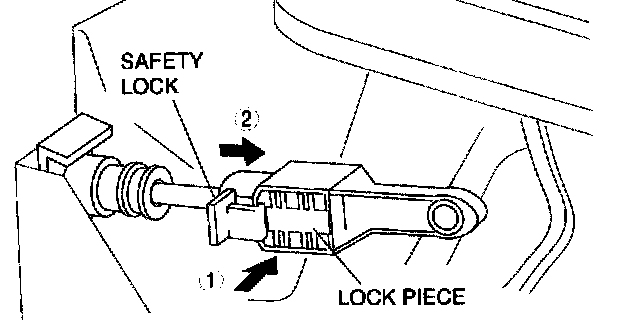

5. Lock the lock piece of the selector cable (selector lever side) in the order shown.
6. Install the center console.
7. Shift the selector lever from P position to M range, and make sure that there are no other components in that area to interfere with the lever.
