Selector Lever Inspection

SELECTOR LEVER INSPECTION





1. Turn the ignition switch to ON (engine OFF).

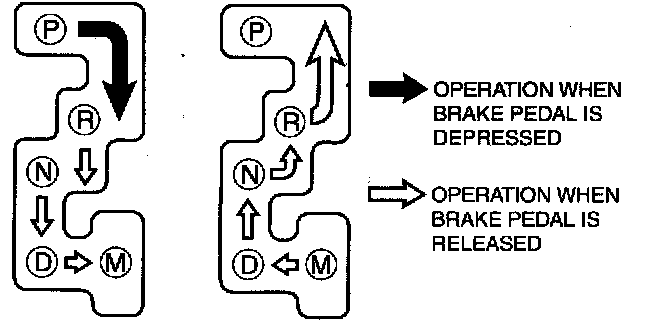

2. With the brake pedal depressed, verify that there is a "click" at each range when-shifted.
3. Verify that the selector lever can be shifted.
4. Verify that there is a "click" at each position when shifted from P position to M range.

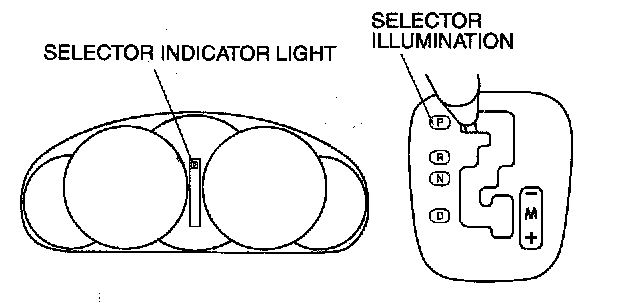

5. Verify that the positions of the selector lever and the indicator are aligned.
^ If not as specified, adjust the TR switch.
6. Verify that the vehicle operates in each selected range.
