Transmission Temperature Sensor/Switch: Service and Repair

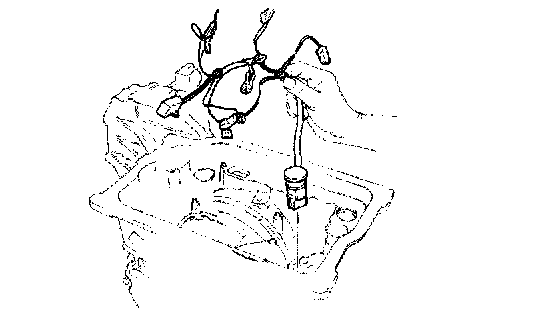

TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [FN4A-EL]

Warning: A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool before changing the ATF.

1. Remove the oil pan.
2. Remove the control valve body.

3. Remove the coupler component.
4. Install the coupler component.
5. Install the control valve body.
6. Install the oil pan.
7. Carry out the mechanical system test.
