Flywheel: Testing and Inspection

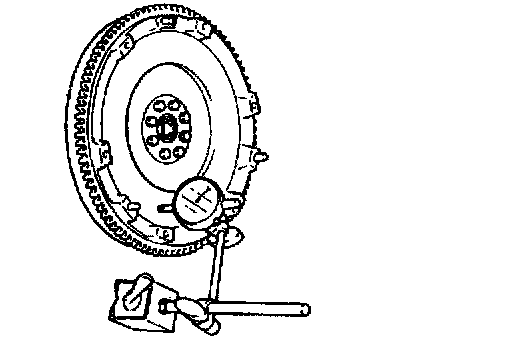

FLYWHEEL INSPECTION 1.
Install a dial gauge on the cylinder block.
2.
Measure the
flywheel runout using a dial gauge.
^
If the runout is excessive, replace the
flywheel.
Runout
G35M-R manual transaxle models
0.1 mm (0.004 inch) max.
