5TH Synchronizer Key Spring, 5TH Synchronizer Key and 5TH Clutch Hub and Sleeve Assembly Note

5th Synchronizer Key Spring, 5th Synchronizer Key and 5th Clutch Hub and Sleeve Assembly Note
1. Assemble the 5th synchronizer key springs, 5th synchronizer key and 5th clutch hub to the 5th clutch sleeve.

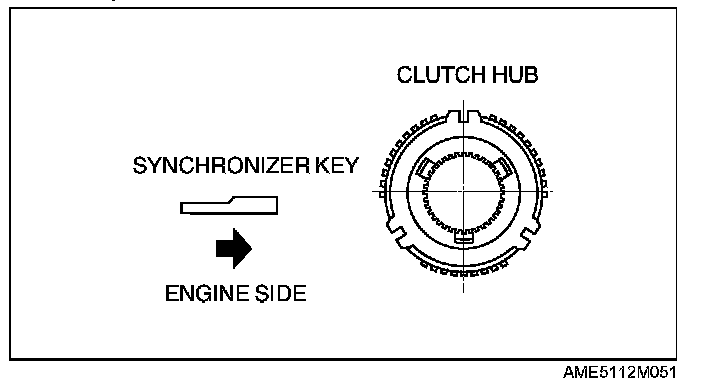

1) Install a new 5th clutch hub in the direction as shown in the figure.

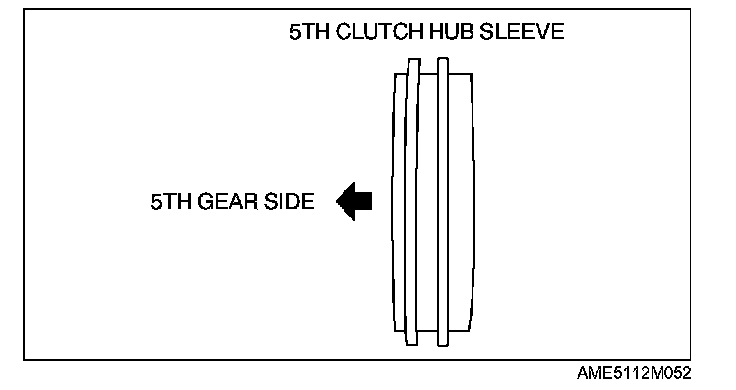

2) Install a new 5th clutch sleeve in the direction as shown in the figure.

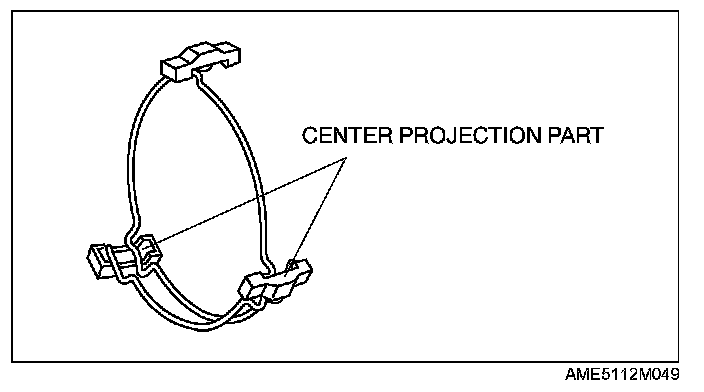

3) Install center projection parts of 5th synchronizer key springs to different synchronizer keys on each side.
