Primary Shaft Front Bearing Assembly Note

Primary Shaft Front Bearing Assembly Note

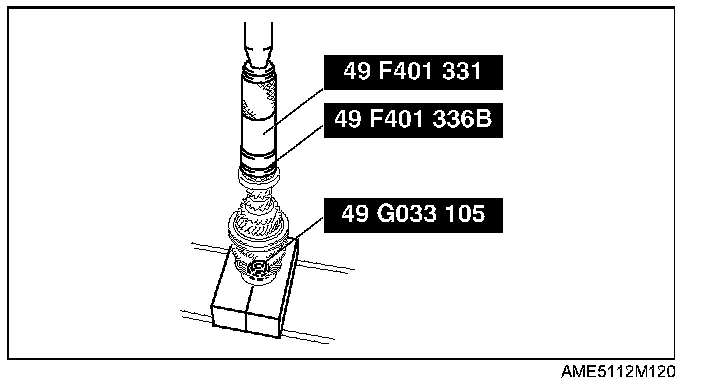

1. Install the primary shaft front bearing using the SSTs.
2. Inspect the 3rd gear and 5th gear thrust clearance and 4th gear end play. (See PRIMARY SHAFT COMPONENTS PREINSPECTION.)
