Snap Ring Assembly Note
Snap Ring Assembly Note 1.
Install a new snap ring to the primary shaft.
2.

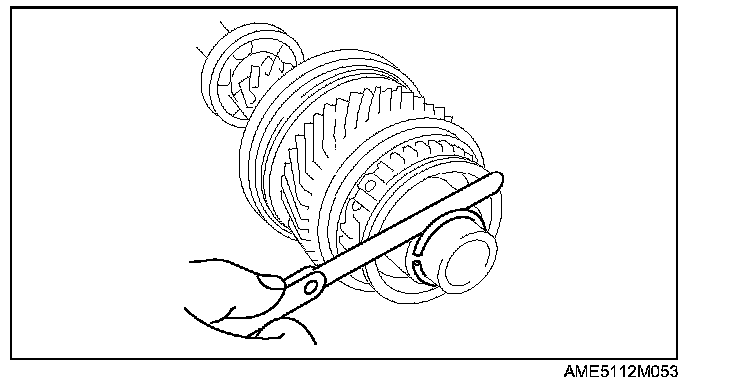

Measure the clearance between the snap ring and the primary shaft bearing spacer.
^
If it is not within the specification, adjust it by selecting a proper snap ring from below.
Clearance:
0.0 - 0.1 mm (0.0000 - 0.0039 in)

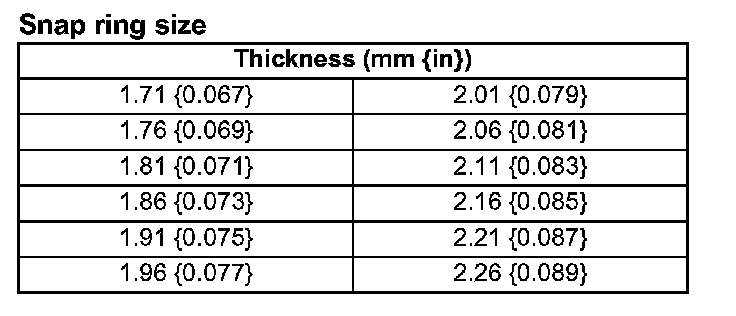

Snap ring size
