4TH Gear Adjustment Shim Assembly Note

4th Gear Adjustment Shim Assembly Note
1. Install the 4th gear adjustment shim washer.

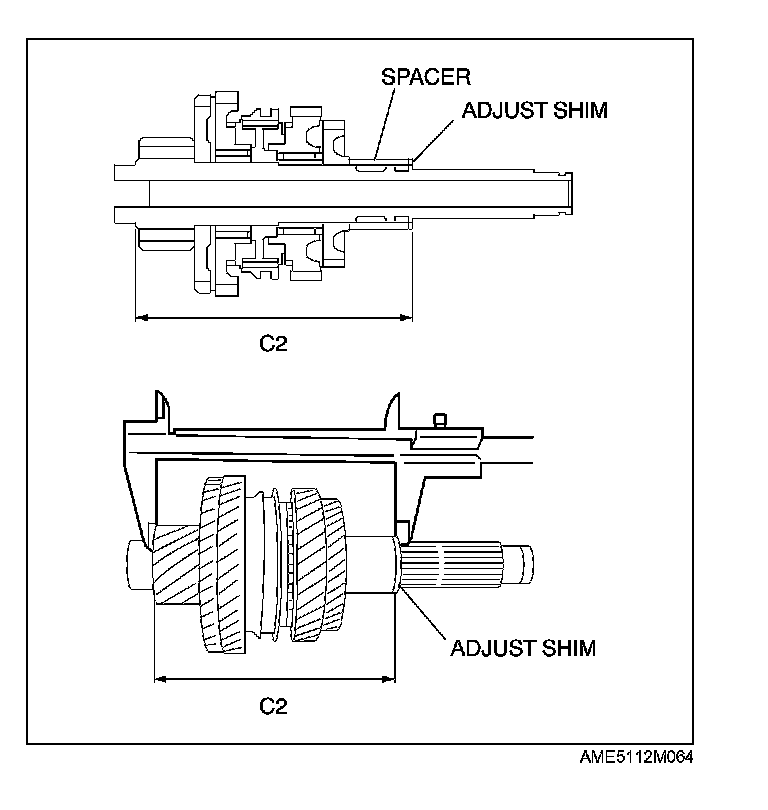

2. Measure length C2 as shown in the figure.
^ If it is not within the specification, adjust it by selecting a proper 4th gear adjustment shim from below.
^ Select only one 4th gear adjustment shim.

Specification:
C2: 173.85 - 173.95 mm (6.844 - 6.848 in)

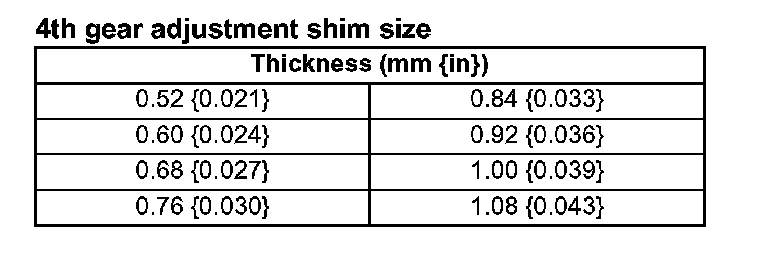

4th gear adjustment shim size
