Roll Pin Disassembly Note

Roll Pin Disassembly Note

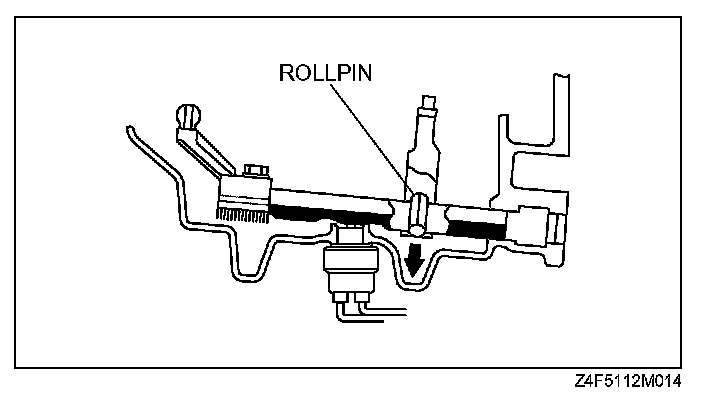

1. Align the groove for removal of the clutch housing pin with the position of the roll pin, then tap the pin out using a pin punch.
