Transaxle Oil Inspection [G35M-R]

TRANSAXLE OIL INSPECTION [G35M-R]





1. Park the vehicle on level ground.

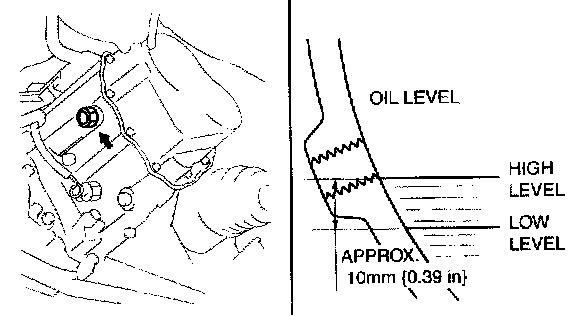

2. Remove the oil level plug and washer.
3. Verify that the oil is near the brim of the plug port.
^ If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.
Specified oil grade API Service GL-4 or GL-5
Specified oil viscosity All-season: SAE 75W-90
Above 10°C (50°F): SAE 80W-90
4. Install a new washer and the oil level plug.
Tightening torque 40 - 58 Nm (4.1 - 5.9 kgf-m, 30 - 42 ft. lbs.)
