Rear Door Window Glass: Service and Repair

REAR DOOR GLASS REMOVAL/INSTALLATION

1. Fully roll down the rear door glass.
2. Remove the rear door trim.
3. Remove the hole cover.

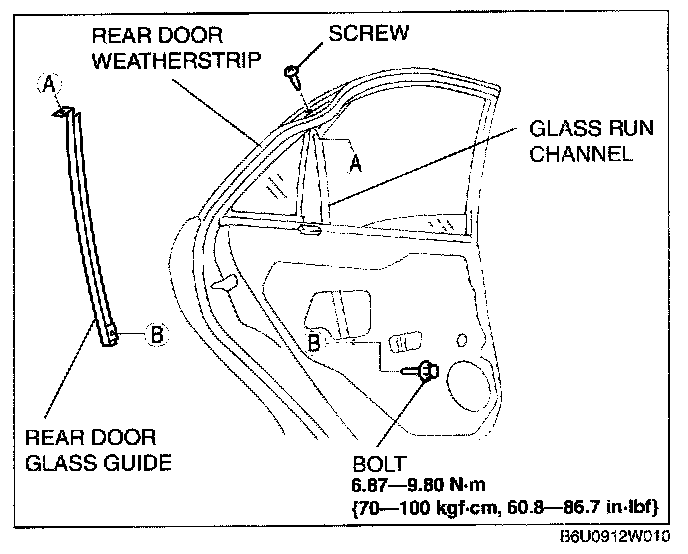

4. Pull up the rear door weatherstrip and remove the screw.
5. Remove the bolt.




6. Remove the glass run channel from the rear door glass guide.

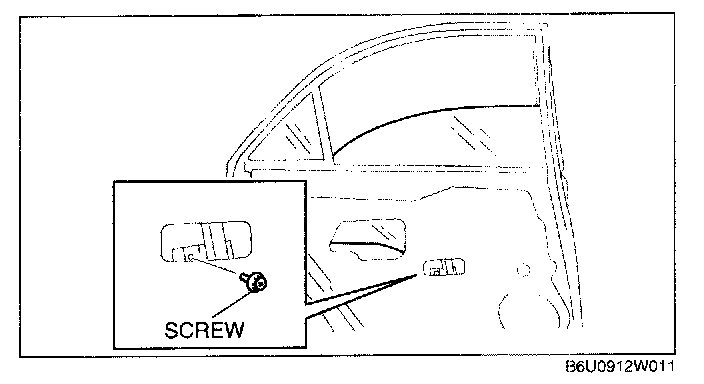

7. Lift the rear door glass to the position where the rear door glass installation screw is visible.
8. Remove the screw.
9. Lift out the rear door glass.
10. Install in the reverse order of removal.
