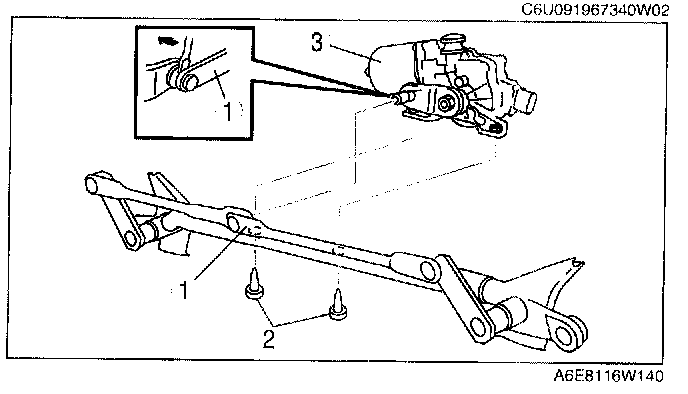

Windshield Wiper Motor Disassembly/Assembly
WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY 1.

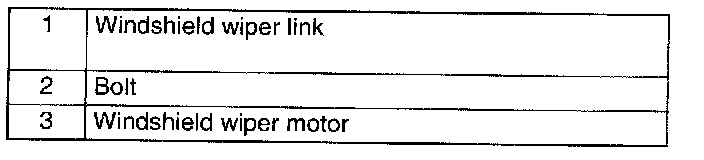

Disassemble in the order indicated in the table.
2.
Assemble in the reverse order of disassembly
Windshield Wiper Link Removal Note 1.
Pry off the connection between the windshield wiper motor and windshield wiper link.
