Keyless Entry Transmitter Battery: Service and Repair

TRANSMITTER BATTERY REPLACEMENT

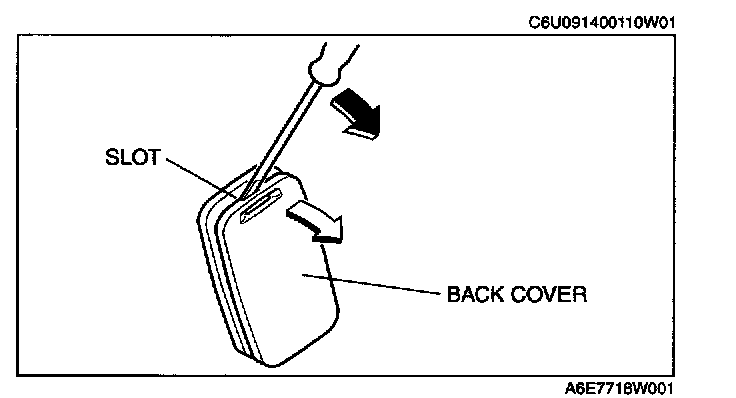

1. Insert a small screwdriver into the slot and gently pry open the transmitter.

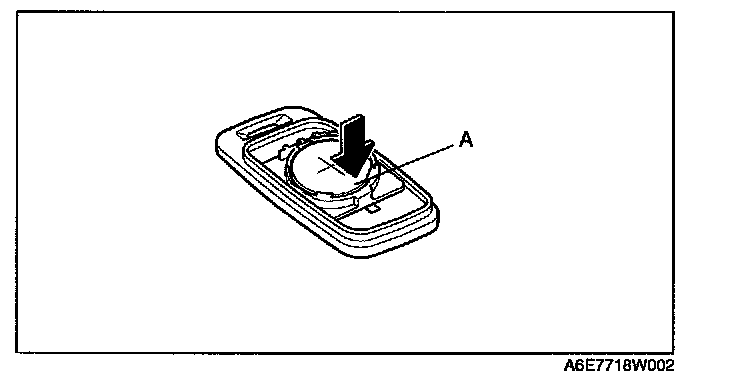

2. Press the portion of the battery indicated by A and remove the battery.

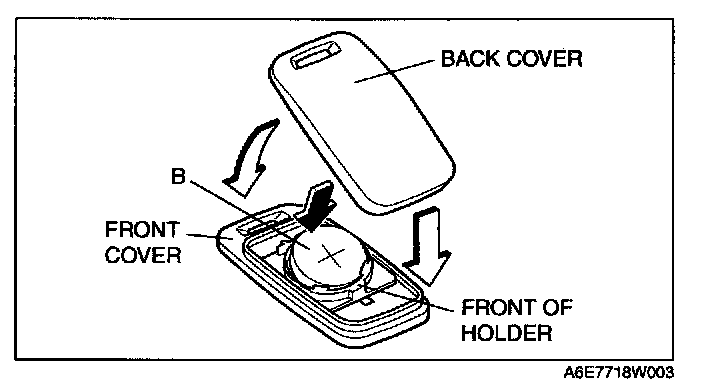

3. Install a new battery (CR2025) into the front portion of the holder with the positive pole (+) facing up. Press on the B portion of the battery to set the battery.




4. Align the front and back covers and snap the transmitter shut.

Battery specification
Lithium CR2025 x 1

NOTE: The batteries will last about 2 years when used 10 times a day.
